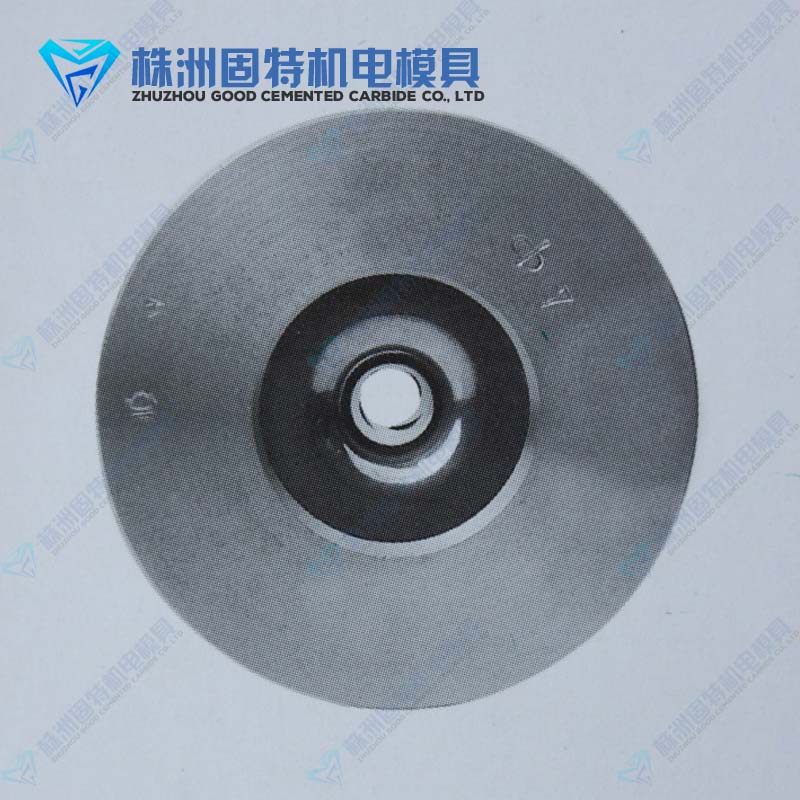

Spiral wire drawing die

Nominal diameter d/mm： 3.00
Spiral nib quantity/pcs： 3-4
Spiral rib lead （c）： 24~30

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: The carbide wire drawing dies are made by 100% virgin raw material. The tungsten carbide has low impurity content so the wire drawing dies won’t crack easily. With HIP (Hot Isostatic Press) process to ensure the stable microstructure, the service life time of wire drawing dies is longer. So die change is less and it can improve the working & production efficiency.
The drawing dies have wide application and they can be used for drawing copper, aluminum, steel, spiral wires, ferrous and nonferrous wires, rods and tubes, etc.

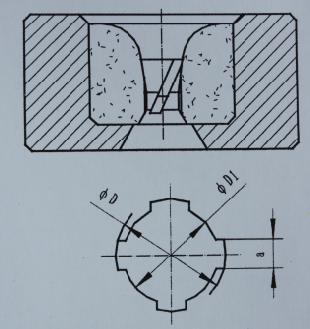

■Drawing

■Size(mm)

Nominal diameter d/mm	Spiral nib quantity/pcs	Basic size		Outline size		Single rib size	Spiral rib lead （c）
Nominal diameter d/mm	Spiral nib quantity/pcs	Base diameter D1/mm	Tolerance /mm	Outline diameter D/mm	Tolerance /mm	Width a/mm	Spiral rib lead （c）
3.00	3-4	2.80	±0.05	3.2	±0.05	0.9~1.3	24~30
4.00	3-4	3.85	±0.05	4.25	±0.05	0.9~1.3	24~30
4.80	4	4.60	±0.05	5.10	±0.05	1.3~1.7	28~36
5.00	4	4.80	±0.05	5.30	±0.05	1.3~1.7	28~36
6.00	4	5.80	±0.05	6.30	±0.05	1.6~2.0	30~38
6.25	4	6.00	±0.05	6.70	±0.05	1.6~2.0	30~40
7.00	4	6.73	±0.05	7.46	±0.1	1.8~2.2	35~45
8.00	4-6	7.75	±0.05	8.45	±0.1	2.0~3.4	40~50
9.00	4-6	8.75	±0.05	9.45	±0.1	2.1~3.7	42~52
10.00	4-6	9.75	±0.05	10.45	±0.1	2.5~4.0	45~58
11.00	6	10.5	±0.05	11.6	±0.1	2.5~3.0	65~80
12.00	6	11.5	±0.05	12.6	±0.1	3.0~3.5	75~85
13.00	6	12.4	±0.05	13.5	±0.1	3.2~3.8	75~90

Note: The size of steel bushing can be customized as per your request.
Not all the sizes are showed in here.
Welcome OEM&ODM and we can produce the dies as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
