Carbide anvils 6-facet processed Φ70-Φ95

Series： Φ80
D： 80.0-83.0
E： 25.0
H： 64.5
F： 12.0
β： 41°

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: Cemented carbide anvils are the synthesis cavities and processes in manufacturing artificial diamond powder and they’re a key device during making diamond. Adopting high temperature and pressing, the anvils are high hardness and wear resistance, high resistance and corrosion resistance.

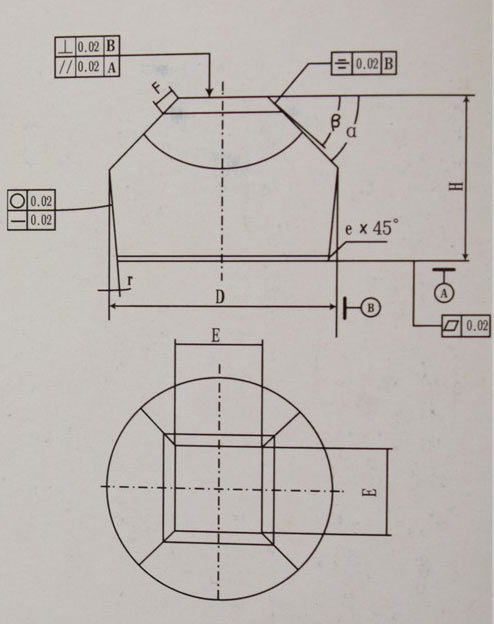

■Drawing

■Size(mm)

Size(mm)Φ70-Φ95 processed:

carbide-anvils-size

Series	D	E	H	F	β
Φ80	80.0-83.0	25.0	64.5	12.0	41°
	80.0-83.0	25.5	64.5	12.0	41°
	80.0-83.0	25.5	64.0	11.0	40°
	80.0-83.0	26.5	64.5	12.0	41°
	80.0-83.0	27.0	64.5	12.0	41°
	80.0-83.0	27.0	64.5	11.0	41°
	80.0-83.0	27.3	64.5	12.0	41°
	80.0-83.0	27.5	64.5	12.0	41°
	80.0-83.0	27.5	64.5	11.0	41°
	80.0-83.0	27.5	64.5	12.0	40°
	80.0-83.0	28.5	64.5	12.0	41°30’
	80.0-83.0	29.0	64.0	12.5	41°
	80.0-83.0	29.0	63.5	12.0	41°
Φ90	90.0-92.0	28.5	70.0	12.0	41°
	90.0-92.0	29.4	70.0	13.0	41°30’
	90.0-92.0	29.5	70.0	12.0	41°
	90.0-92.0	30.0	69.0	13.0	41°
	90.0-92.0	30.0	70.0	12.0	41°
	90.0-92.0	32.0	68.0	13.0	41°
Φ95	94.0-95.8	28.5	68.0	13.0	41°
	94.0-95.8	29.5	72.0	12.0	41°30’
	94.0-95.8	32.0	70.0	10.0	41°
	94.0-95.8	32.0	73.0	10.0	41°

Note: welcome OEM&ODM and we can produce the anvils as drawings..
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
