  • Carbide hammers

Carbide hammers

  • Standard: ZG120Mn13Cr2
  • Lower yield strength Rel MPa: ≥390
  • Tensile strength Rm Mpa: ≥735
  • The section elongation A%: ≥20
  • Hardness HBW: ≤300

We're here to help:

Easy ways to get the answers you need.

Share With :
All Information
Description

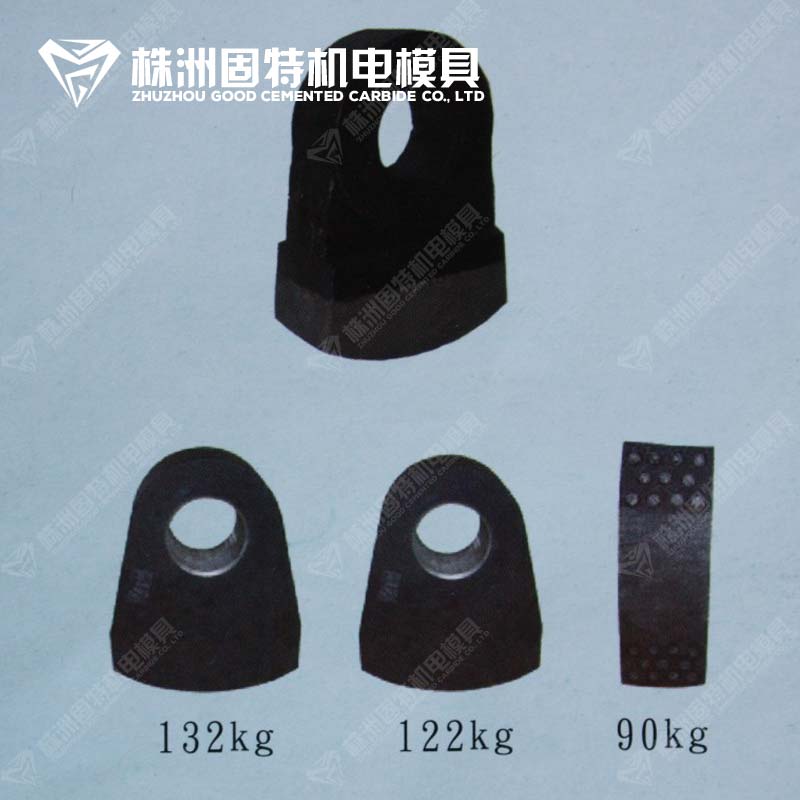

Application & features: Crushing of carbide hammers have much higher hardness as compared with high manganese steel and high chrome alloy steel. Our crusher hammers use refining, vacuum casting, directional solid and etc. technology to increase the grain refinement and make the hammers performance achieve the best performance. Hammer hardness is the most essential factor in determining hammer life so the hammer head must be extremely hard and resistant to wear. We use a special method of heat treating that make the hammer hardness and wear resistance reach the best state of cooperation, thus greatly improve hammer’s service life time. As the material, our crusher hammer can be divided into: high manganese hammer, high chrome hammer, bimetal composited hammer, etc. Our crusher hammers generally can save users 1/3 equipment investment, saving 1/2 the power consumption, save a lot of maintenance costs. No lump chipping and breakage occurs with wear resistance increased by more than 15 times and the operational of has won good appraisal from customers.
We can supply upon customers’ requirements mechanical crushing hammers of various shape.
Drawing

Size(mm)
Chemical property:
Standard Chemical component %
C Mn Si Cr S P
ZG120Mn13Cr2 1.05~1.35 11~14 0.3~0.9 1.5~2.5 ≤0.04 ≤0.04
ZG120Mn17Cr2 1.05~1.35 16~19 0.3~0.9 1.5~2.5
Notes: Allowed to join trace V, Ti, Ba and RE and so on.

Mechanical property
Standard Lower yield strength Rel
MPa
Tensile strength Rm
Mpa
The section elongation A% Shock absorption KU2
J
Hardness HBW
ZG120Mn13Cr2 ≥390 ≥735 ≥20 ≤300

Note: welcome OEM&ODM and we can produce the hammers as drawings.

Awaiting for your inquiry, we will response you at the first time!
