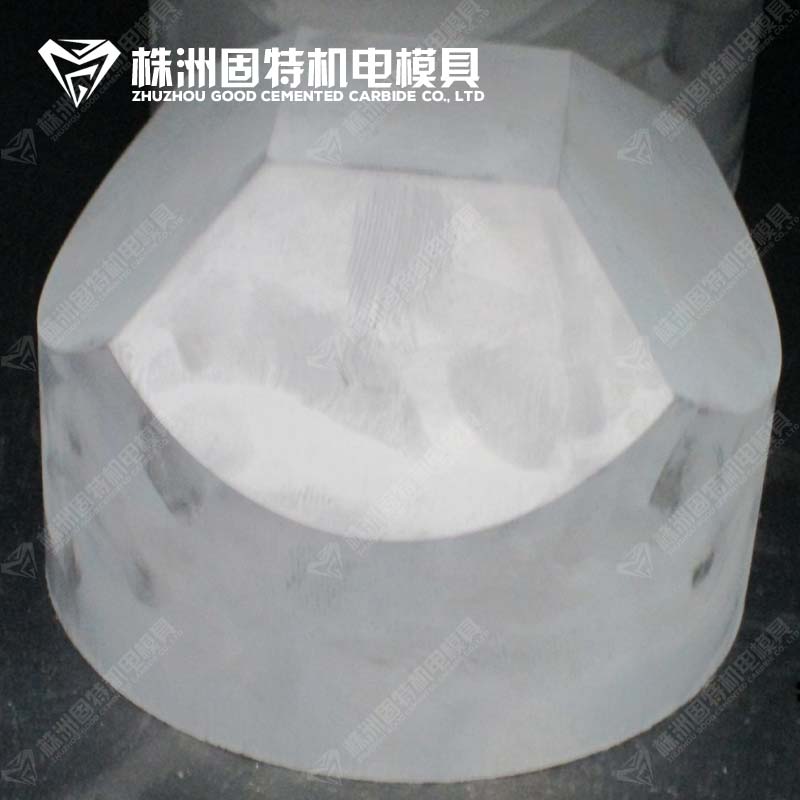

Carbide anvils 6-facet processed Φ103-Φ115

Carbide anvils 6-facet processed Φ103-Φ115

Series： Φ103
D： 102.0-106.0
E： 31.0
H： 75.0
F： 13.0
β： 41°

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: Cemented carbide anvils are the synthesis cavities and processes in manufacturing artificial diamond powder and they’re a key device during making diamond. Adopting high temperature and pressing, the anvils are high hardness and wear resistance, high resistance and corrosion resistance.

■Drawing

■Size(mm)

Size(mm)Φ103-Φ115 processed:

carbide-anvils-size

Series	D	E	H	F	β
Φ103	102.0-106.0	31.0	75.0	13.0	41°
	102.0-106.0	31.0	64.5	11.0	41°
	102.0-106.0	31.5	75.0	12.5	41°30’
	102.0-106.0	31.5	75.0	13.0	41°
	102.0-106.0	32.5	76.0	12.5	41°
	102.0-106.0	32.5	83.0	11.5	41°
	102.0-106.0	32.5	75.0	14.0	41°30’
	102.0-106.0	33.0	75.0	12.5	41°
	102.0-106.0	33.0	85.0	12.5	41°
	102.0-106.0	33.5	75.0	12.5	41°
	102.0-106.0	35.0	74.3	13.0	41°
	103.0-104.7	36.0	76.0	13.0	41°
	102.0-106.0	36.0	82.0	13.0	41°
	102.0-106.0	37.0	75.0	12.0	41°
	102.0-106.0	37.0	85.0	12.0	41°
	102.0-106.0	38.0	82.5	12.5	41°
	102.0-106.0	39.0	82.4	12.0	41°
Φ109	109.0-111.0	37.0	82.5	13.0	41°
	109.0-111.0	38.5	80.0	13.0	41°
	109.0-111.0	39.0	80.0	13.0	41°
Φ115	115.0-116.0	36.5	82.0	15.0	41°30’
	115.0-116.5	39.5	81.0	13.0	41°
	115.0-116.5	40.0	82.5	13.0	41°
	115.0-116.5	41.0	81.0	13.0	41°
	115.0-116.5	42.0	82.5	13.0	41°30’

Note: welcome OEM&ODM and we can produce the anvils as drawings.
Φ122-Φ175 sintered and processed are also available.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
