Your Are here: Home > Products > Carbide anvils

Carbide anvils 6-facet processed Φ70-Φ95

Carbide anvils 6-facet sintered Φ103-Φ115

Carbide anvils 6-facet processed Φ103-Φ115

Carbide anvils 2-facet sintered

Item： 26
D： 83.0
H： 76.5
d： 35.5
H： 47.75
α： 60°

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: Cemented carbide anvils are the synthesis cavities and processes in manufacturing artificial diamond powder and they’re a key device during making diamond. Adopting high temperature and pressing, the anvils are high hardness and wear resistance, high resistance and corrosion resistance.

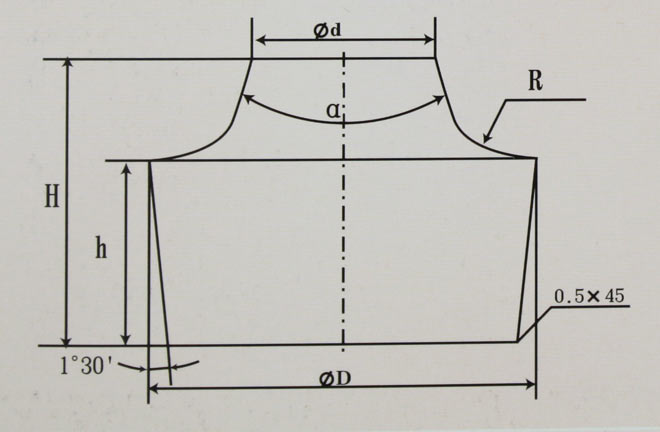

■Drawing

■Size(mm)

Size(mm) 2-facet sintered:

carbide-anvils-size

Item	D	H	d	H	α	E
26	83.0	76.5	35.5	47.75	60°	25.4
27	111.2	88.5	42.5	51.4	60°	24.5
28	145.5	107.5	60.5	65.0	50°	30.0

Note: welcome OEM&ODM and we can produce the anvils as drawings..
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
