■Description

Description: The carbide wire drawing dies are made by 100% virgin raw material. The tungsten carbide has low impurity content so the wire drawing dies won’t crack easily. With HIP (Hot Isostatic Press) process to ensure the stable microstructure, the service life time of wire drawing dies is longer. So die change is less and it can improve the working & production efficiency.
The drawing dies have wide application and they can be used for drawing copper, aluminum, steel, spiral wires, ferrous and nonferrous wires, rods and tubes, etc.

■Drawing

■Size(mm)

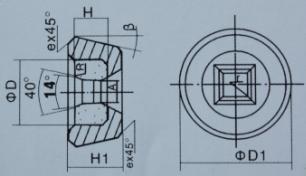

Type 40	Type 41

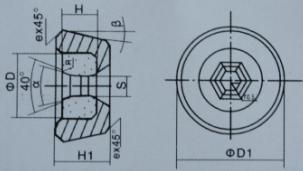

Type 42	Type 60

Type	Size of die blank			Size of Steel sleeve		Range of nib diameter
Type	D	H	α°	D1	H1	Range of nib diameter
40	16	12	14°	33	20	1.8-2.7
	22	18	14°	40	26	2.8-4.6
	30	21	14°	66	30	4.7-7.7
	35	25	14°	70	35	7.8-10.7
	45	25	14°	100	35	10.8-15.7
	50	28	14°	125	45	15.8-19.7
	60	30	16°	135	50	19.8-24.7
	65	32	16°	140	50	24.8-28.5
	70	35	16°	150	55	28.6-32.5
	80	35	16°	170	55	32.6-38.5
	90	40	20°	180	65	38.6-42.5
	100	40	20°	190	70	42.6-49.5
	120	45	20°	200	70	49.6-55
41						a , b size
	30	21		66	30	6.7*4.7
	35	25		70	35	7.7-9.72.77.7
	45	25		100	35	11.7*7.7-9.7
	50	28		125	45	13.7-17.6*6.7-15
	60	30		135	50	19.6-23.6*7.7-14.7
42						a , b size
	20	12		40	20	1.9-3.8*1.0-2.0
	25	15		45	23	3.9-7.1*1.0-4.0
	35	18		70	26	7.2-12.7*1.1-6.5
	45	20		100	30	12.8-15*1.4-60
	50	20		125	35	16.5-24*1.0-60
	60	20		135	35	24.5-32*1.0-40
60			α°			S size
	30	21	14°	66	30	2.5-8.5
	35	21	14°	70	30	8.6-11.0
	40	25	14°	90	35	11.5-13.0
	45	25	14°	100	35	13.5-19.0
	55	28	14°	130	40	19.5-24.0
	65	30	16°	140	50	24.5-29.0
	75	35	16°	160	55	29.5-38.0
	90	35	16°	180	65	38.3-50.0
	100	40	16°	190	70	52.0-58.5
	120	42	16°	200	70	59.5-75.0

Note: not all the sizes and types are showed in here.
Welcome OEM&ODM and we can produce the dies as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
