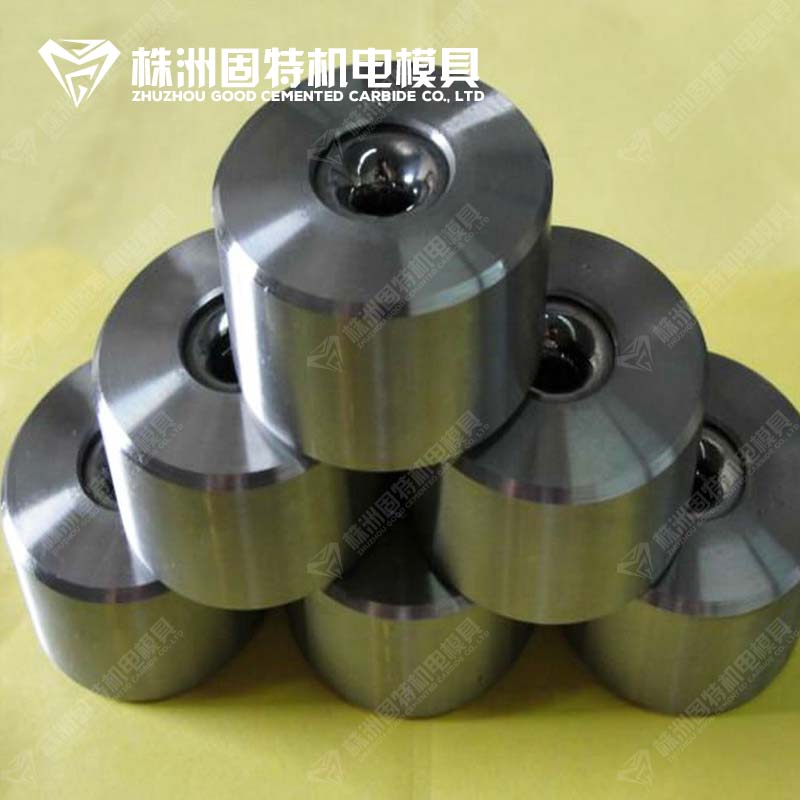

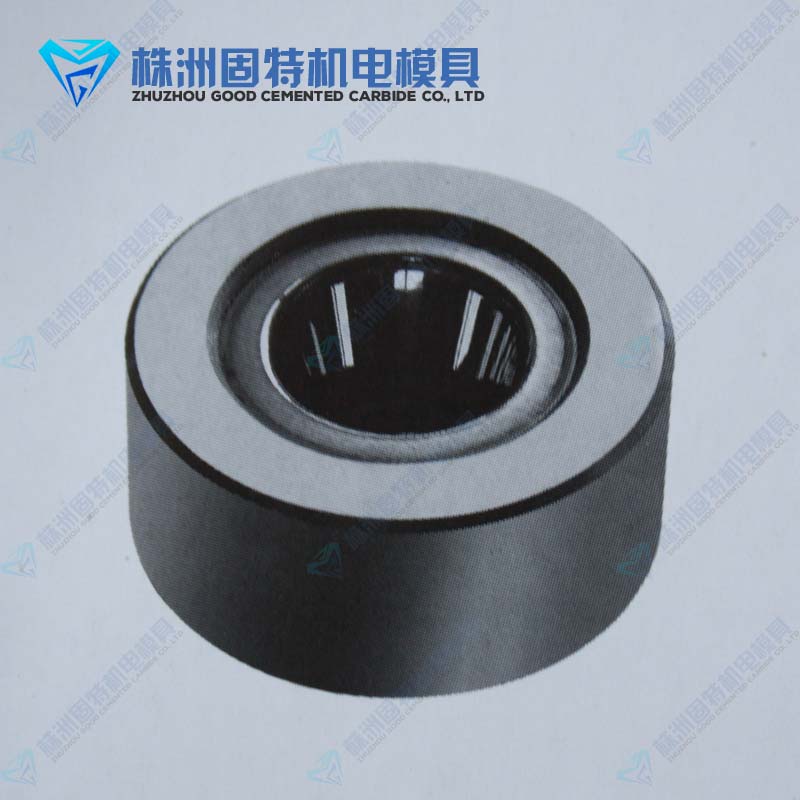

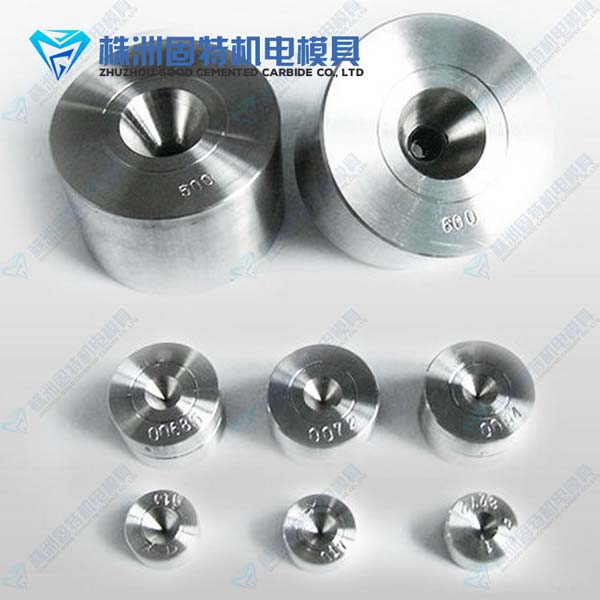

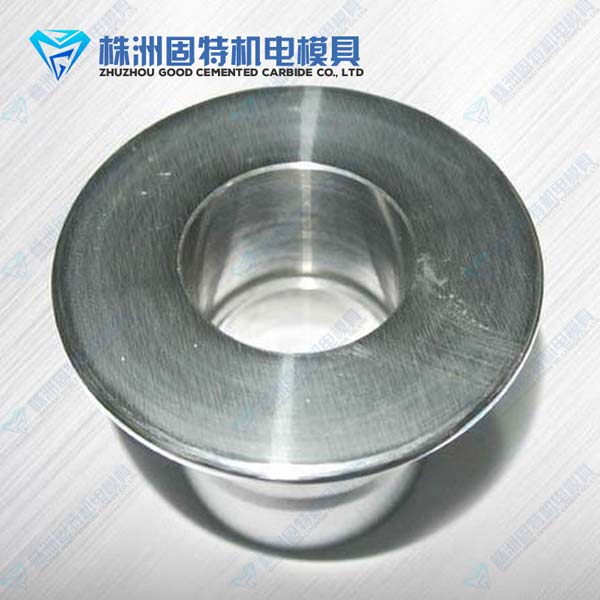

Round wire drawing die

Type： 10
Range of nib diameter： 0.25~0.8

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: The carbide wire drawing dies are made by 100% virgin raw material. The tungsten carbide has low impurity content so the wire drawing dies won’t crack easily. With HIP (Hot Isostatic Press) process to ensure the stable microstructure, the service life time of wire drawing dies is longer. So die change is less and it can improve the working & production efficiency.
The drawing dies have wide application and they can be used for drawing copper, aluminum, steel, spiral wires, ferrous and nonferrous wires, rods and tubes, etc.

■Drawing

■Size(mm)

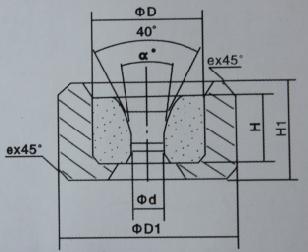

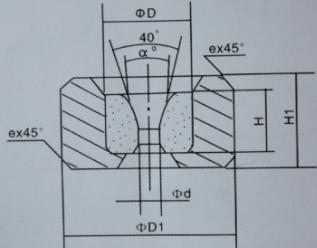

Type 10	Type 11	Type 12

Type	Size of die blank			Size of Steel sleeve		Range of nib diameter
Type	D	H	α°	D1	H1	Range of nib diameter
10	6	4	40°	25	12	0.25~0.8
10	8	6	40°	28	12	0.4~0.8
11	8	6	10°	28	12	0.4~1.0
	13	10	10°	30	16	0.4~1.6
	16	14	12°	32	23	0.4~2.8
	22	18	14°	40	26	1.8~4.7
	22	20	14°	40	28	5.2~5.7
12	8	6	16°	25	10	0.4~0.8
	13	8	16°	30	14	0.4~2.3
	16	10	16°	32	16	0.8~2.8
	20	12	16°	40	20	2.3~3.8
	22	14	16°	45	24	4.2~5.7
	26	16	16°	50	28	6.4~8.0

Type 13	Type S11

Type S13	Type W1

Type	Size of die blank			Size of Steel sleeve		Range of nib diameter
Type	D	H	α°	D1	H1	Range of nib diameter
13	30	21	14°	66	35	3.7~10.5
	40	25	14°	90	42	10.5~16.5
	50	28	14°	102	51	16.5~25.5
	60	35	18°	120	60	25.5~35.5
	75	35	18°	130	60	35.5~45.0
	90	35	20°	150	65	45.0~59.0
	110	40	20°	170	70	59.0~71.0
	140	50	20°	210	80	71.0~85.0
S11	8	6	14°	28	12	0.4~1.0
	13	10	16°	30	16	0.4~1.6
	16	14	16°	32	23	0.4~2.8
	22	18	18°	40	26	1.8~6.2
S13	30	21	20°	66	35	3.7~10.5
	40	25	20°	90	42	10.5~16.5
	50	28	20°	102	51	16.5~25.5
	60	35	20°	120	60	25.5~35.5
	75	35	22°	130	60	35.5~45.0
	90	35	22°	150	65	45.0~59.0
	110	40	22°	170	70	59.0~71.0
	140	50	22°	210	80	71.0~85.0
W1	9	6	12°	28	12	0.5~1.5
	12	8	14°	30	15	0.5~2.5
	15	10	14°	42	20	0.6~5.0
	20	14	14°~16°	55	24	1.0~7.5
	25	18	16°	60	28	5.3~8.0
	30	22	16°	70	35	6.0~11.7
	35	25	16°	85	40	7.7~16.0
	40	27	18°	100	45	10.3~16.5
	50	30	18°	125	50	14.4~19.4
	60	35	18°	145	60	18.5~27.0
	70	40	18°	175	70	24.5~31.5
	80	45	18°	195	80	32.0~39.0
	90	50	18°	215	90	39.0~47.0
	100	50	18°	230	90	47.0~55.0

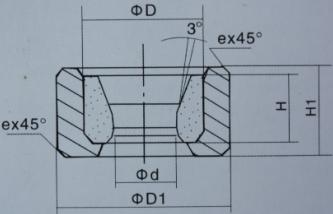

Type 20	Type 21

Type 22	Type 23

Type	Size of die blank		Size of Steel sleeve		Range of nib diameter
Type	D	H	D1	H1	Range of nib diameter
20	16	14	32	22	2.0~4.0
	22	18	40	26	4.1~5.0
	30	22	66	38	5.1~9.0
	35	25	72	45	9.1~12.0
	40	28	90	45	12.1~15.0
	45	30	95	54	15.1~18.0
	50	32	102	54	18.1~22.0
	55	32	110	56	22.1~26.0
	60	34	120	57	26.1~29.0
	65	36	124	58	29.1~33.0
	75	42	130	63	33.1~37.0
	85	45	145	66	37.1~41.0
	95	48	156	70	41.1~47.0
	100	52	160	70	47.1~56.0
	110	52	170	76	56.1~60.0
21	50	35	102	57	20~26
	60	35	120	60	26.1~32
	70	45	130	60	32.1~42
	80	45	140	63	42.1~48
	90	45	150	71	48.1~58
	100	45	160	73	58.1~62
22	20	13	40	23	2.8~6.7
	30	18	66	32	6.7~12.0
	45	24	95	48	12.0~24.0
	60	30	120	54	24.0~34.0
	80	35	140	60	34.0~49
	90	40	150	68	49.0~55
	100	40	160	70	55.0~59
	120	45	180	73	59.0~69
	130	50	200	80	69.0~79
	140	50	210	80	79.0~90
23	50	32	102	54	20~26
	60	35	120	60	26~32
	70	42	130	63	32~38
	75	42	130	63	38~42
	85	45	145	66	42~48
	100	50	160	70	48~56
	110	50	170	73	56~64
	125	55	190	78	64~72

Note: not all the sizes and types are showed in here.
Welcome OEM&ODM and we can produce the dies as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
