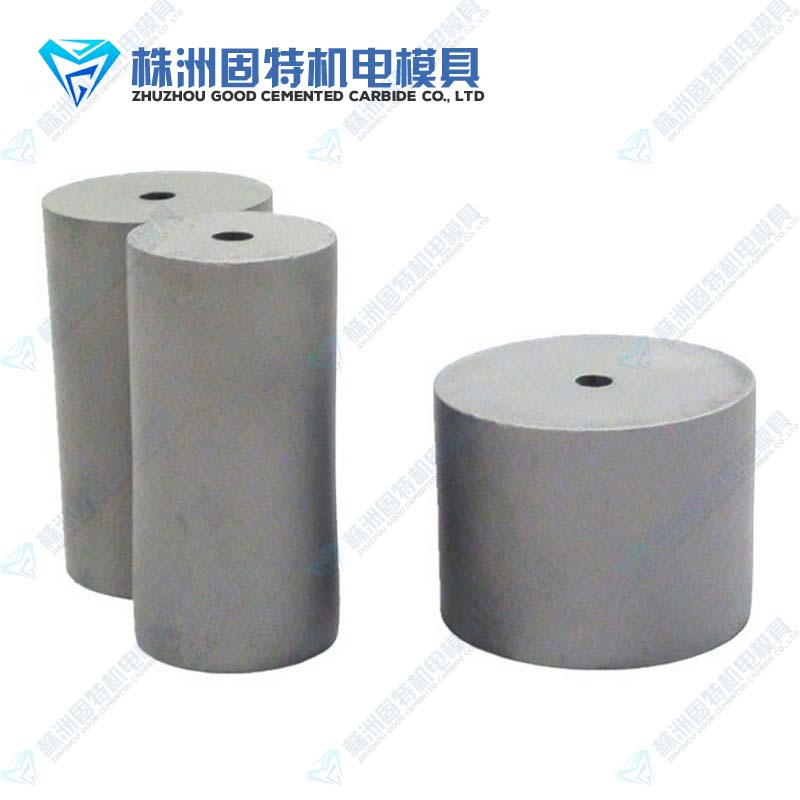

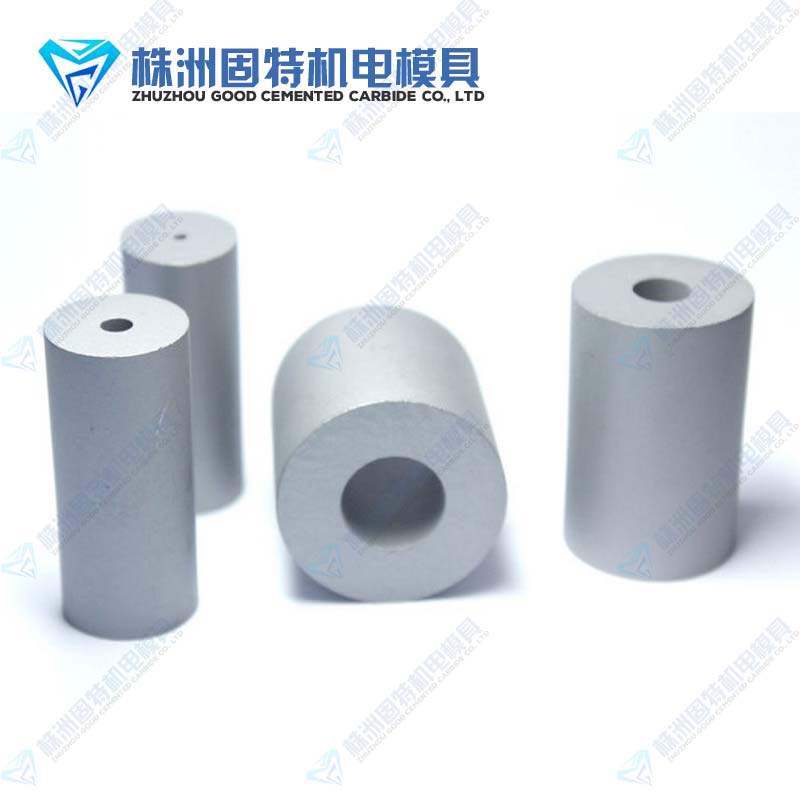

Carbide heading dies

Type： Flatheaded
d： 2.0-6.0
L： 25-60

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: Suitable for cold heading and cold punching standard parts, screws and rivets of copper, aluminum, steel, and alloy steel. They are available in the frequently used types of flat-headed cold heading dies sunk cold heading dies, one operation-punching and ejection dies, rod reducing dies.

■Drawing

■Size(mm)

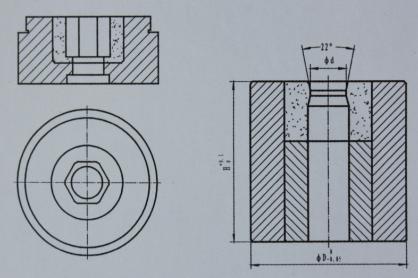

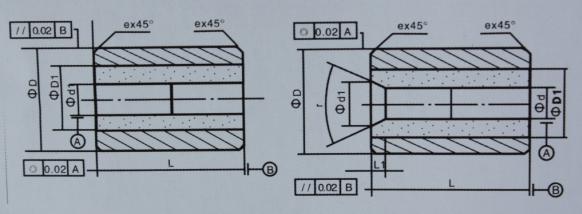

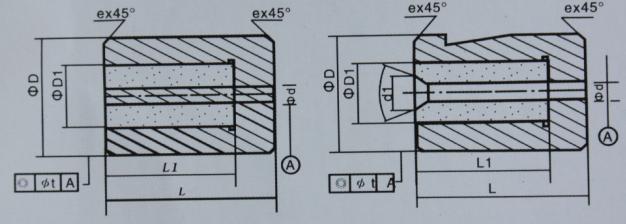

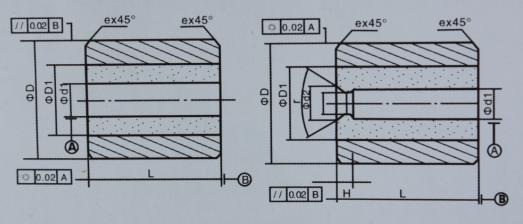

The sketches and sizes are as follows:

carbide-heading-dies-sizes

Type	d	L
Flatheaded	2.0-6.0	25-60
Sunk	2.0-5.0	25-50

Type	d	L
One operation punching and ejection dies	10.0-25.0	100-130
Rod reducing dies	10.0-25.0	100-130

Type	d	L
One operation punching and ejection dies	7.0-15.0	30-100
Rod reducing dies	7.0-15.0	30-100

Material: common YG20C, if you need other grades, it’s ok and please let us know.
Note: welcome OEM&ODM. We can customize heading dies as drawings.
