Carbide strips

Type： 40-W
Length： 40
Width： 5.0

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: The tungsten carbide strips are widely used for making various cemented carbide tools, like cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel-based alloy, titanium alloy and nonferrous metals; PCB drills, drills, end mills & reamers, mold punches, core pins & hole drilling tools as well as various cutting machines.
With advanced technology, automatic pressing, HIP sintering and precision grinding, our carbide strips have features in high wear resistance, hardness, toughness & impact resistant, combination abilities, etc.

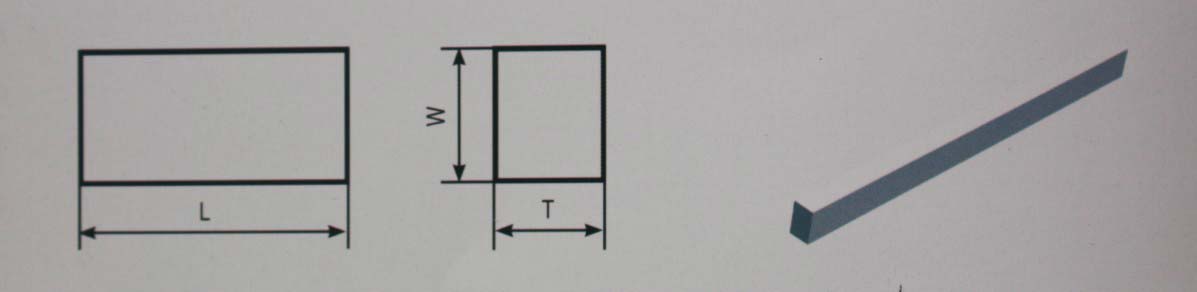

■Drawing

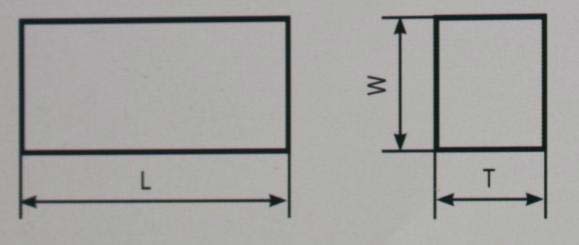

■Size(mm)

Type	Length	Width
40-W	40	5.0
40-W	40	12
50-W	50	5.5
50-W	50	8.2
70-W	70	4.8
70-W	70	6.4
70-W	70	8.0
70-W	70	12.7
70-W	70	16
80-W	80	10
100-W	100	4.2
100-W	100	4.5
100-W	100	6.0
100-W	100	6.5
100-W	100	8.0
100-W	100	10
100-W	100	12
100-W	100	14
100-W	100	15.5
100-W	100	16
100-W	100	20
127-W	127	3.2
127-W	127	6.4
127-W	127	8.0
127-W	127	9.5
154-W	154	4.8
154-W	154	6.4
154-W	154	8.0
154-W	154	9.5
154-W	154	12.8
154-W	154	15.1
154-W	154	19.1
154-W	154	22.2
154-W	154	25.4
154-W	154	28.7
154-W	154	31.8
154-W	154	38.1
310-W	310	6.0
310-W	310	8.0
310-W	310	10
310-W	310	12
310-W	310	14
310-W	310	15
310-W	310	16
310-W	310	18
310-W	310	20
310-W	310	22
310-W	310	25
310-W	310	30
310-W	310	34
310-W	310	40
310-W	310	50
310-W	310	60
310-W	310	70
330-W	330	6
...		...

Note: not all the sizes are showed in here. Other sizes are also available upon request.
It’s no limit on the height.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
