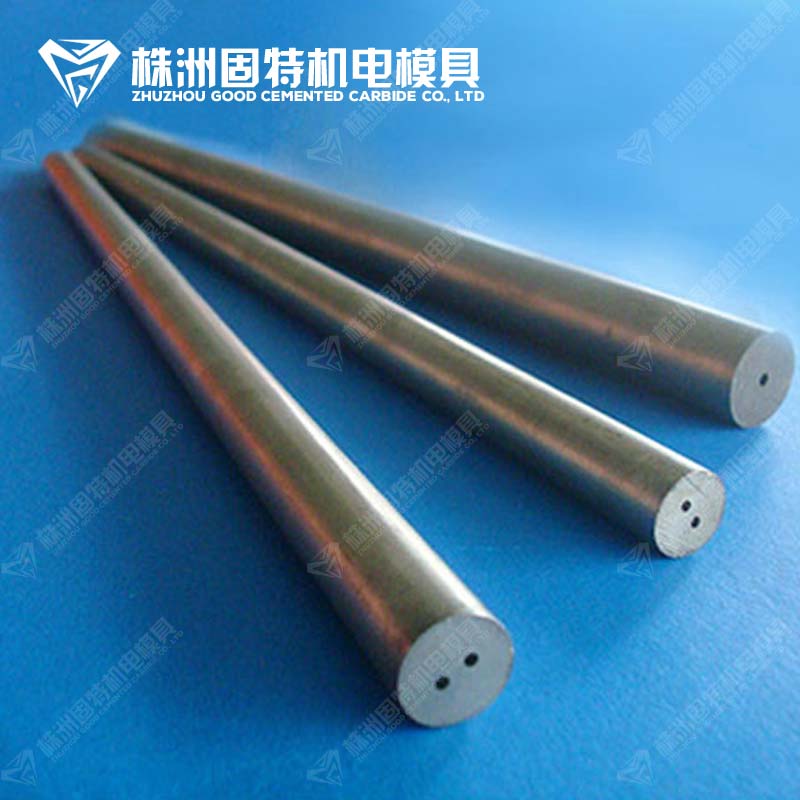

Tungsten carbide rods with two straight holes

Type： 100-Φ-Φ-Φ
Outer diameter： 4.3
Hole diameter ： 0.8
Distance between two holes ： 1.8
Length ： 100

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: The carbide rods are widely used for making high-performance cutting tools, like PCB drills, micro-drills, drills, end mills & reamers, milling cutter, rotary file, mold punches, core pins & hole drilling tools, etc., suitable for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, high speed steel, nickel-based alloy, titanium alloy and nonferrous metals, etc.
With advanced technology, automatic pressing, HIP sintering and precision grinding, our carbide rods have features in high wear resistance, hardness, toughness & combination abilities, etc.

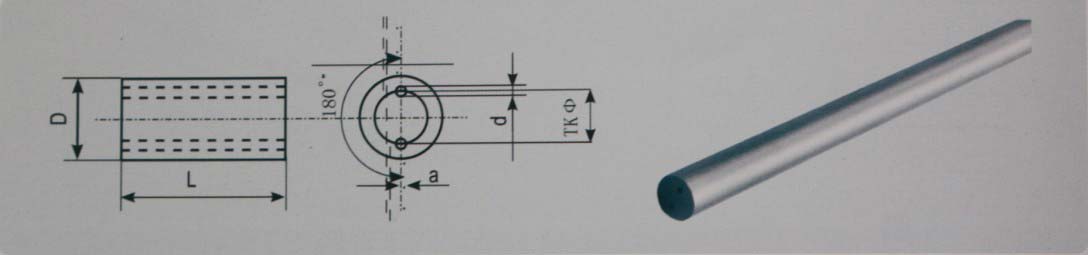

■Drawing

■Size(mm)

Type	Outer diameter	Hole diameter	Distance between two holes	Length
100-Φ-Φ-Φ	4.3	0.8	1.8	100
100-Φ-Φ-Φ	5.3	0.8	2.0	100
100-Φ-Φ-Φ	6.3	1.0	3.0	100
100-Φ-Φ-Φ	7.3	1.0	3.5	100
330-Φ-Φ-Φ	8.3	1.0	4.0	330
330-Φ-Φ-Φ	9.3	1.4	4.0	330
330-Φ-Φ-Φ	10.3	1.4	5.0	330
330-Φ-Φ-Φ	11.3	1.4	5.0	330
330-Φ-Φ-Φ	12.3	1.75	6.0	330
330-Φ-Φ-Φ	13.3	1.75	6.0	330
330-Φ-Φ-Φ	14.3	1.75	7.0	330
330-Φ-Φ-Φ	15.3	2.0	7.0	330
330-Φ-Φ-Φ	16.3	2.0	8.0	330
300-Φ-Φ-Φ	17.3	2.0	8.0	300
300-Φ-Φ-Φ	18.3	2.0	9.0	300
300-Φ-Φ-Φ	19.3	2.0	9.0	300
300-Φ-Φ-Φ	20.3	2.5	10	300
300-Φ-Φ-Φ	4.3	0.8	1.8	300
...	...	...	...	...

Note: not all the sizes are showed in here. Other sizes are also available upon request.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
