All Information

■Description

Application & features: The carbide rods are widely used for making high-performance cutting tools, like PCB drills, micro-drills, drills, end mills & reamers, milling cutter, rotary file, mold punches, core pins & hole drilling tools, etc., suitable for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, high speed steel, nickel-based alloy, titanium alloy and nonferrous metals, etc.
With advanced technology, automatic pressing, HIP sintering and precision grinding, our carbide rods have features in high wear resistance, hardness, toughness & combination abilities, etc.

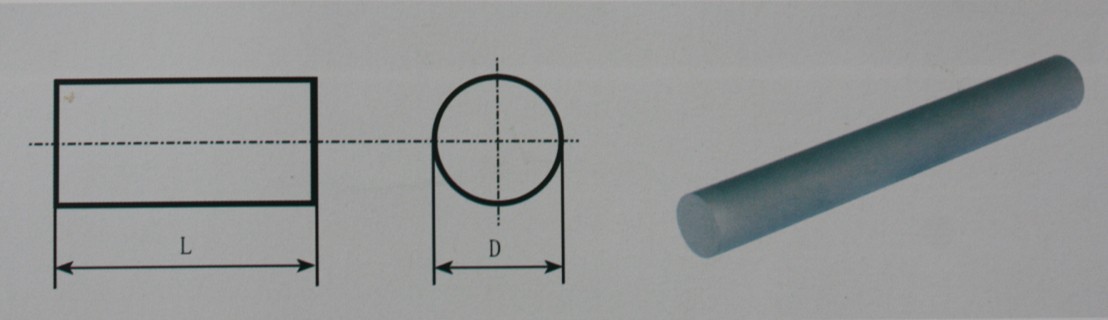

■Drawing

■Size(mm)

Type	Diameter	Length
100-Φ	3.0	100
100-Φ	4.0	100
100-Φ	5.0	100
100-Φ	6.0	100
330-Φ	5.0	330
330-Φ	6.0	330
330-Φ	8.0	330
330-Φ	10	330
330-Φ	11	330
330-Φ	12	330
330-Φ	14	330
330-Φ	16	330
330-Φ	18	330
300-Φ	20	300
300-Φ	23	300
300-Φ	26	300
300-Φ	32	300
...	...	...

Note: not all the sizes are showed in here. Other sizes are also available upon request.

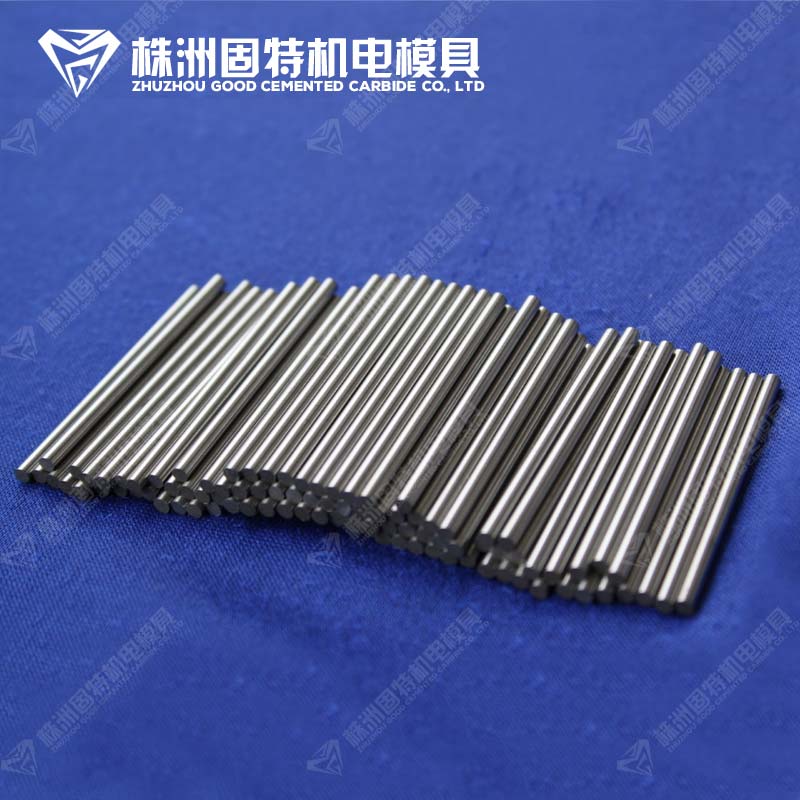

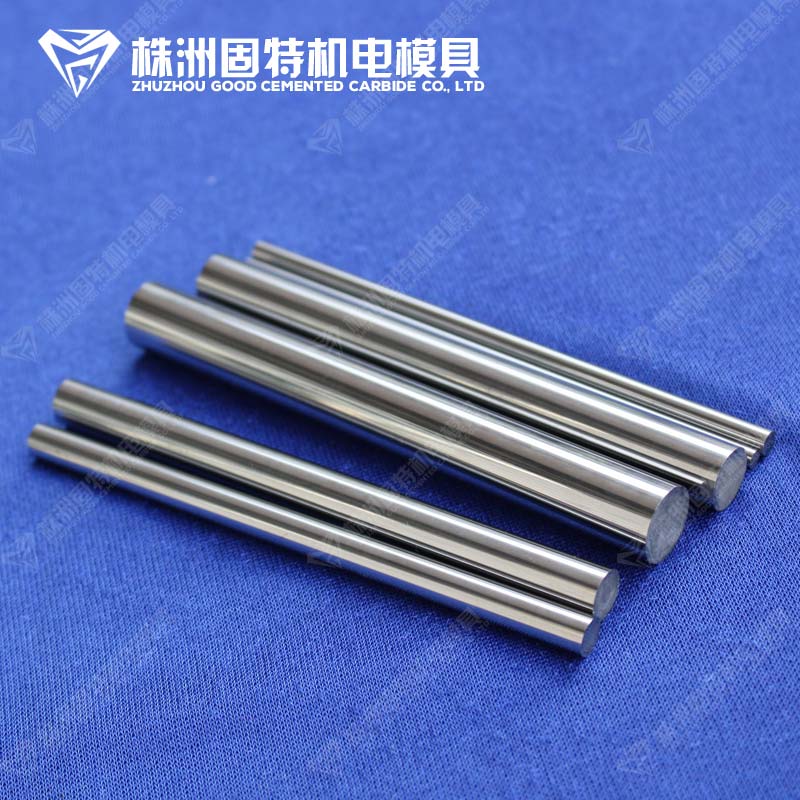

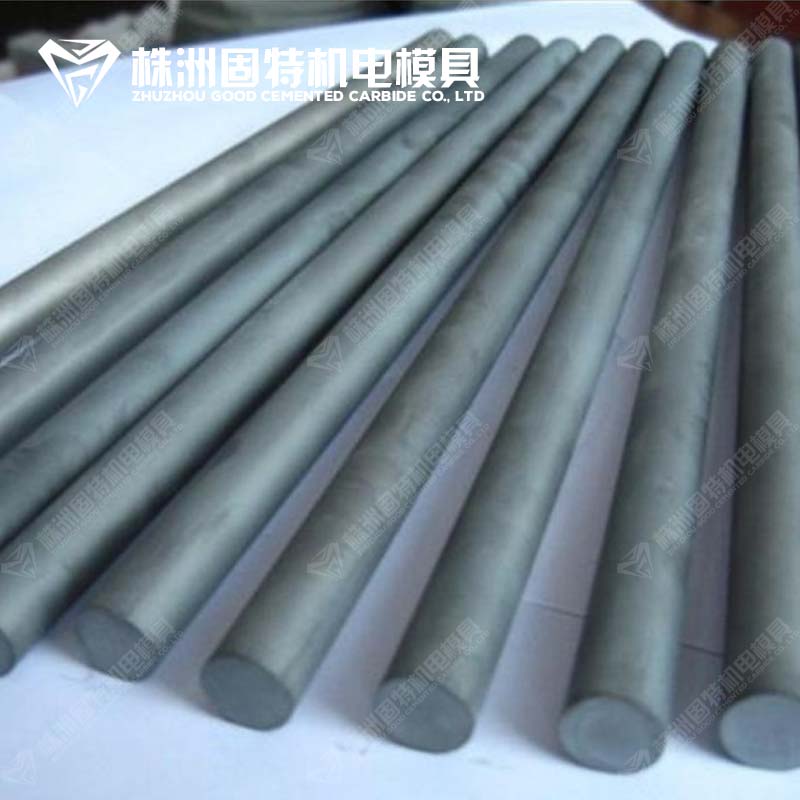

Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
