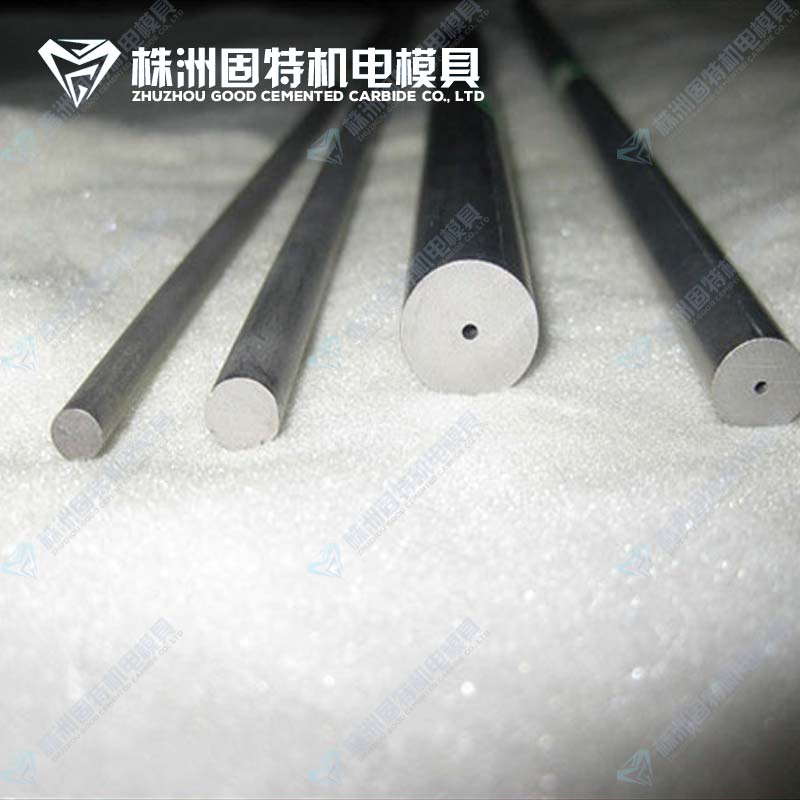

Tungsten carbide rods with single straight hole

Type： 100-Φ-Φ
Outer diameter： 4.0
Inner diameter： 1.0
Length： 100

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: The carbide rods are widely used for making high-performance cutting tools, like PCB drills, micro-drills, drills, end mills & reamers, milling cutter, rotary file, mold punches, core pins & hole drilling tools, etc., suitable for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, high speed steel, nickel-based alloy, titanium alloy and nonferrous metals, etc.
With advanced technology, automatic pressing, HIP sintering and precision grinding, our carbide rods have features in high wear resistance, hardness, toughness & combination abilities, etc.

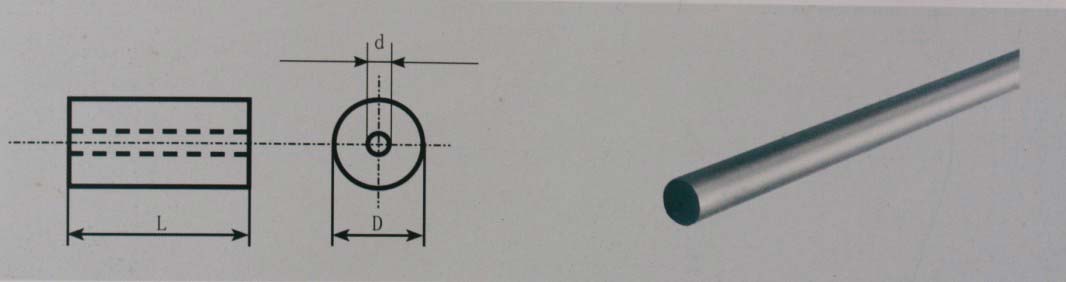

■Drawing

■Size(mm)

Type	Outer diameter	Inner diameter	Length
100-Φ-Φ	4.0	1.0	100
100-Φ-Φ	5.0	1.0	100
100-Φ-Φ	5.0	1.5	100
100-Φ-Φ	6.0	1.0	100
330-Φ-Φ	6.0	1.5	330
330-Φ-Φ	8.0	1.0	330
330-Φ-Φ	8.0	1.5	330
330-Φ-Φ	9.0	1.0	330
330-Φ-Φ	10	1.0	330
330-Φ-Φ	10	2.0	330
330-Φ-Φ	11	1.0	330
330-Φ-Φ	12	1.0	330
330-Φ-Φ	12	2.0	330
330-Φ-Φ	14	2.0	330
330-Φ-Φ	16	2.0	330
330-Φ-Φ	16	3.0	330
300-Φ-Φ	4.0	1.0	300
300-Φ-Φ	5.0	1.5	300
300-Φ-Φ	6.0	1.0	300
300-Φ-Φ	8.0	1.5	300
...	...		...

Note: not all the sizes are showed in here. Other sizes are also available upon request.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
