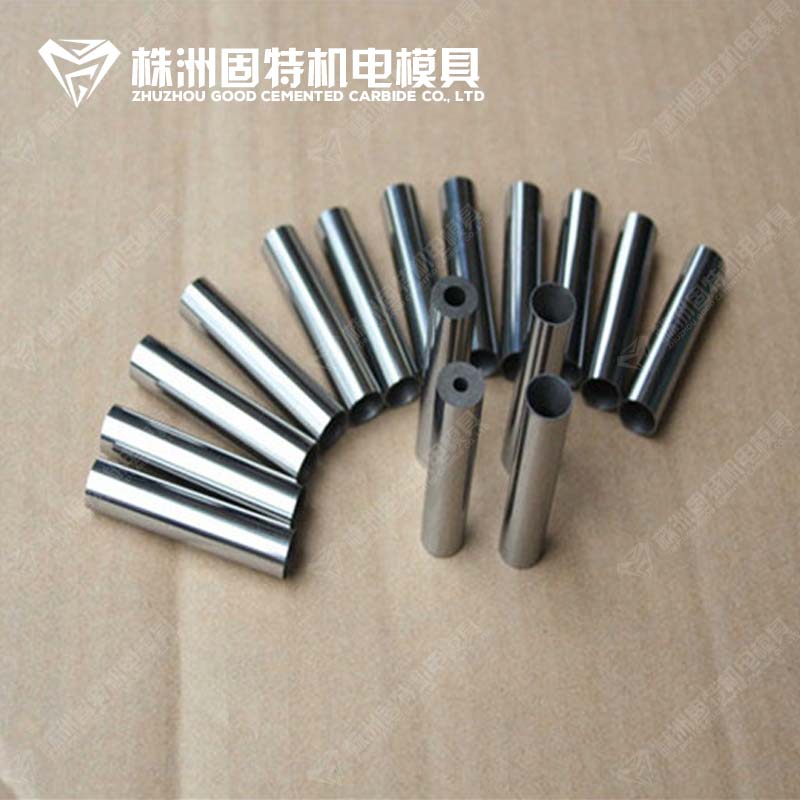

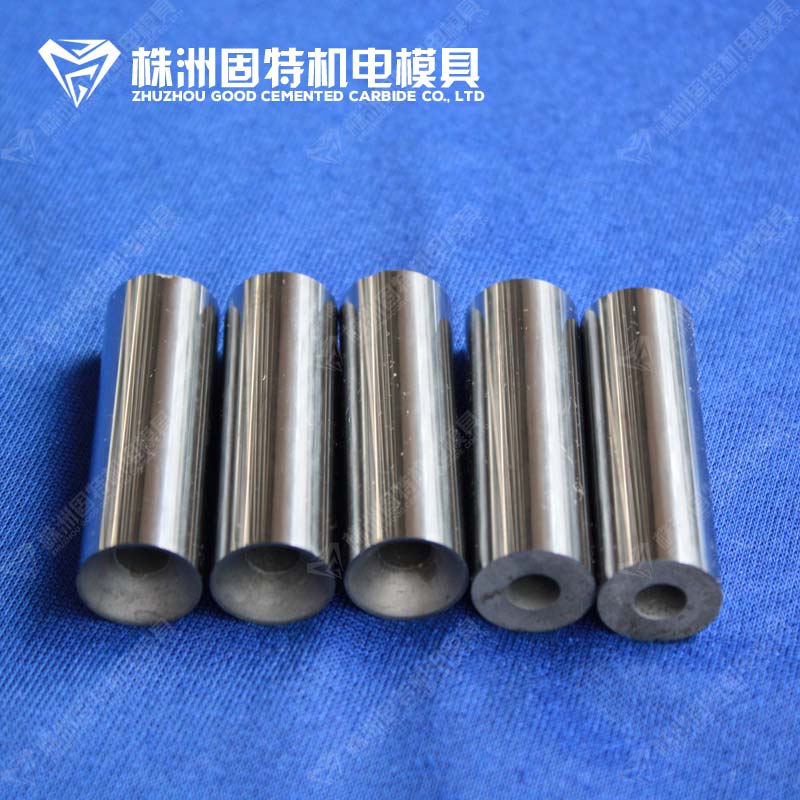

Cemented carbide nozzles

Type： N15015
Outer diameter： 28.7
Inner diameter： 15.0
Length： 15.0

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: With high speed to wash, well wear resistance, excellent corrosion resistance, the cemented carbide nozzles are widely used in sandblasting, shot peening equipment, offering a long life with optimum air and abrasive use; powdering, rust removal, cleaning atomizing in the field of chemistry, food, machinery, architecture etc. They are also used as optimized environment protection products for de-dusting and detergent in the factory with that seriously polluted.

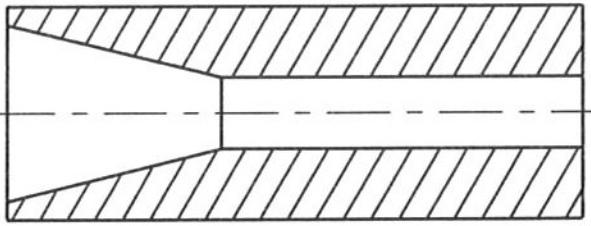

■Drawing

■Size(mm)

Type	Outer diameter	Inner diameter	Length
N15015	28.7	15.0	15.0
N30004	8.0	4.0	30.0
N34004	12.0	4.0	34.0
N45065	14.9	6.5	45.0
N45007	20.0	7.0	45.0
N59006	12.7	6.0	59.0
N59008	12.7	8.0	59.0
N77055	33.5	5.5	77.0
N77075	33.5	7.5	77.0
N77095	33.5	9.5	77.0
N77115	33.5	11.5	77.0
N10208	31.8	8.0	102.0
N130106	31.8	10.6	130.0
N130011	38.0	11.0	130.0
N140124	31.8	12.4	140.0
N140125	38.0	12.5	140.0
N165014	31.8	14.0	165.0
N165014A	38.0	14.0	165.0
N197016	38.0	16.0	197.0
N223019	38.0	19.0	223.0
N224023	38.0	23.0	224.0
...		...	...

Note: not all the sizes are showed in here. Other sizes are also available upon request and welcome OEM&ODM.
Surface: unground, finished ground, polished are ok. Inner also can be polished as per request.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
For the sandblasting application, YG5X, YG6X is the most common.

Awaiting for your inquiry, we will response you at the first time!
