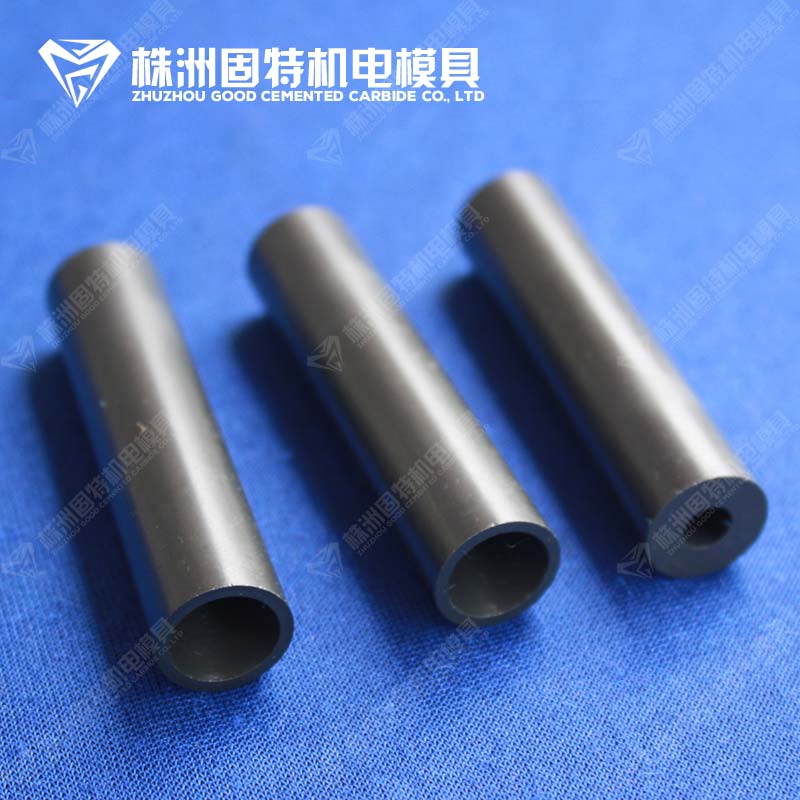

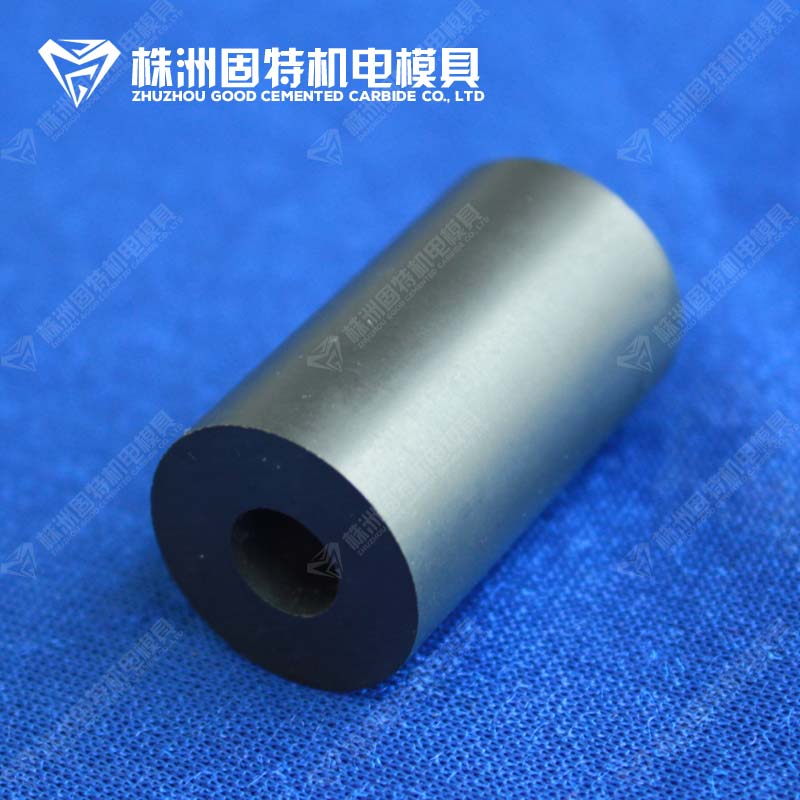

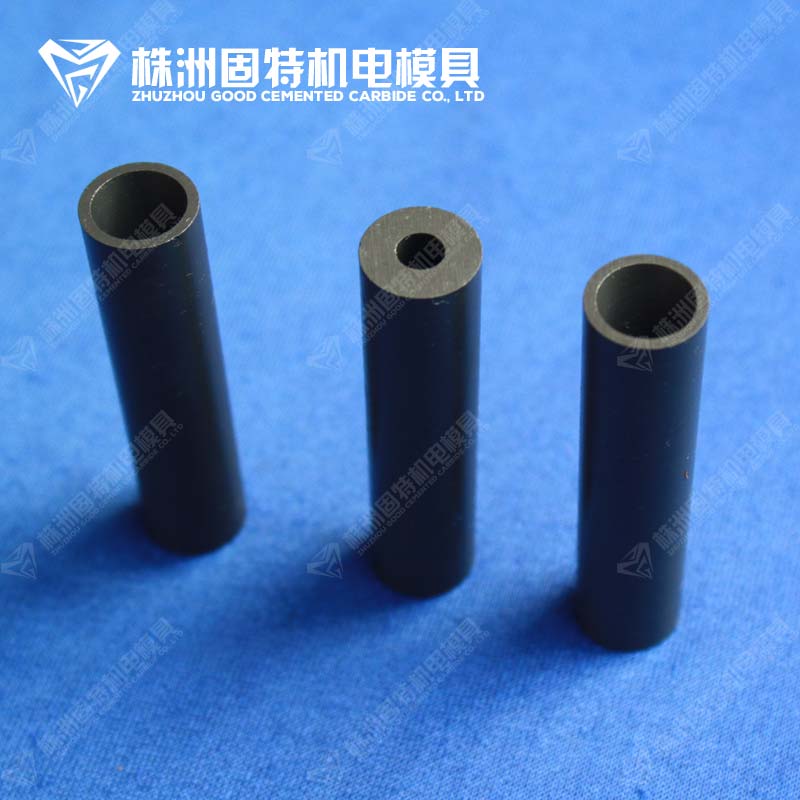

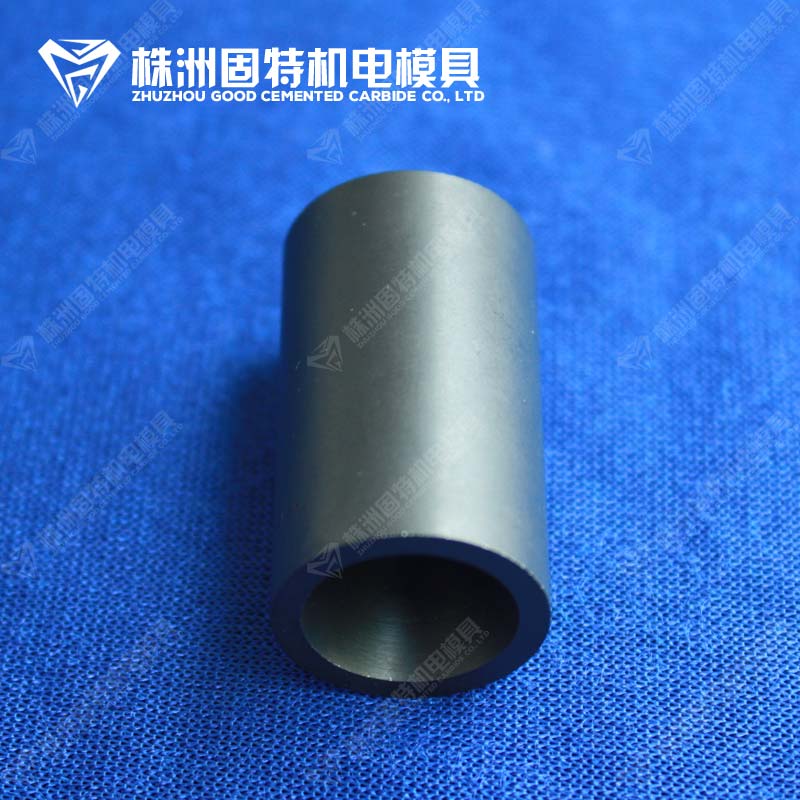

Boron carbide nozzles

Type： N35021
Outer diameter： 21.0
Inner diameter： 5.0-10.0
Length： 35.0

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: The boron carbide nozzles are in very high hardness, excellent wear resistance and the boron carbide won’t react with acid-base. High/low temperature resistance, high pressure resistant, density≥2.46g/cm³,micro hardness≥3500kgf/mm², TRS≥400Mpa, melting point is 2450℃. With above performance, now many customers choose the boron carbide nozzles to replace the nozzles made from tungsten carbide, silicon carbide, silicon nitride, aluminium oxide, zirconium oxide, etc.

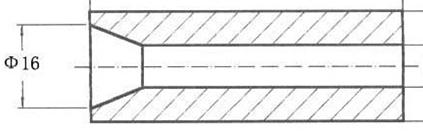

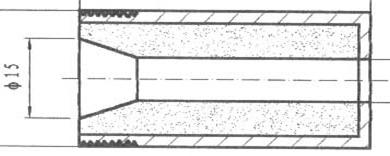

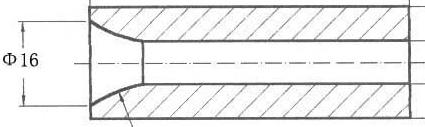

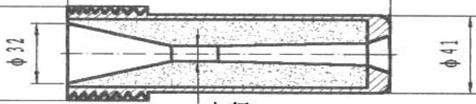

■Drawing

■Size(mm)

Type	Outer diameter	Inner diameter	Length
N35021	21.0	5.0-10.0	35.0
N60021	21.0	5.0-10.0	60.0
N82021	21.0	5.0-10.0	82.0
N100021	21.0	5.0-10.0	100.0

Type	Outer diameter	Inner diameter	Length
N35021A	21.0	5.0-10.0	35.0
N60021A	21.0	5.0-10.0	60.0
N82021A	21.0	5.0-10.0	82.0
N100021A	21.0	5.0-10.0	100.0

Type	Horn diameter	Inner diameter	Length
N54032	15.0	3.2	54.0
N54048	15.0	4.8	54.0
N54064	15.0	6.4	54.0
N54079	15.0	7.9	54.0
N54095	15.0	9.5	54.0
N54111	15.0	11.1	54.0
N54127	15.0	12.7	54.0
N150032	15.0	3.2	150.0
N150048	15.0	4.8	150.0
N150064	15.0	6.4	150.0
N150079	15.0	7.9	150.0
N150095	15.0	9.5	150.0
N150111	15.0	11.1	150.0
N150127	15.0	12.7	150.0

Type	Exit	Inner diameter	Length
N130048	9.0	4.8	130.0
N135064	10.5	6.4	135.0
N140079	12.0	7.9	140.0
N165095	14.0	9.5	165.0
N190111	15.5	11.1	190.0
N215127	17.0	12.7	215.0

Note: not all the types and sizes are showed in here. Other shapes and sizes are also available upon request and welcome OEM&ODM.
