Wedged type

Item： SX0810A-E08
Dimensions D： 8.25
Dimensions H： 10
Dimensions h： 6.5
Dimensions e： 0.8
Dimensions SR： 2

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

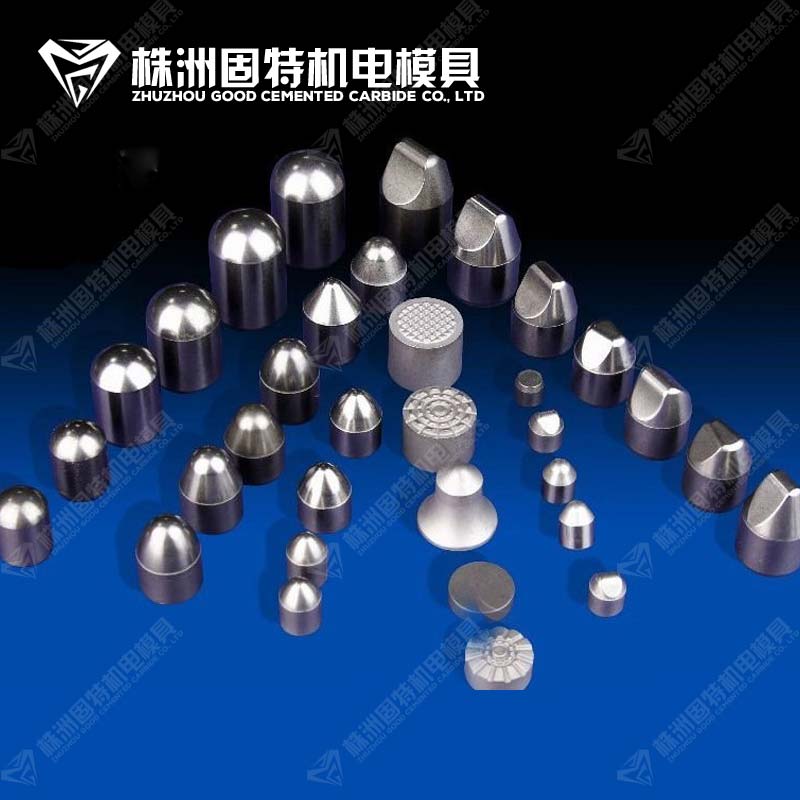

Application & features: Carbide buttons have various shapes, e.g. spherical, ballistic, conical, parabolic, flat-top, etc.
Using 99.95% high purity tungsten carbide powder for production, it has a better strength and hardness, thereby a longer service life.
Taking high isostatic pressing precision machine, our buttons have a uniform density and do not break easily.
Sintered by overvoltage sintering furnace, the carbide buttons are 24% more abrasive resistancing.
Grinded by centerless grinder, it has precise measurement. Welding is more tightly and it won’t drop from drills.
The carbide buttons are used to make rock drill bits widely used in oil field and mining. Suitable for precision lathe are used in nonstop cutting of cast iron. It is fitting for serving as drill heads of heavy rock-digging machinery, plumbum heads are used in deep hole drilling and rock drilling terrace vehicles.

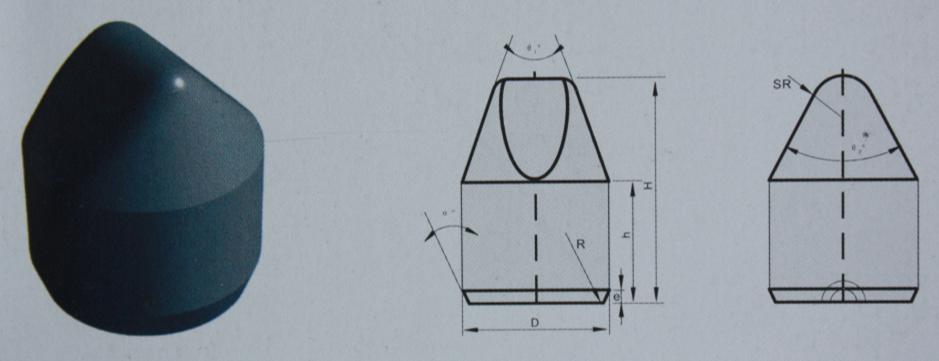

■Drawing

■Size(mm)

Item	Dimensions					Angles
Item	D	H	h	e	SR		α°	α°	β°
SX0810A-E08	8.25	10	6.5	0.8	2		18	90	45
SX10.213-F2	10.25	13	9	1.6	2.5		18	90	45
SX11.314-F2	11.3	14.1	8.1	1.3	3.5		20	75	43
SX11.315-F2	11.3	15	8	1.5	2.75		18	60	45
SX11.317-F2	11.3	17.13	9.13	1.3	3		20	53	40
SX1117C-E11	11.3	17.8	10.1	1.1	3.15		18	50	35
SX12.214-F2	12.22	14	7.5	1.5	3		18	90	40
SX12.215-F2	12.22	15	9	1.5	3		18	90	45
SX12.216-F2	12.22	16	9	1.5	3.5		18	60	40
SX14.318-F2	14.375	18	10.8		3		20	70	40
SX1422-414	14.35	22	11	1.4	2.5		18	53	24
SX16.321-F2	16.35	21	11	2	2.6		18	70	45
SX16.323-F2	16.35	23	12	2	3		18	60	36
SX19.327-F2	19.35	27	14	2.2	2.25		20	65.5	30
SX19.330-F2	19.35	30	16.95	2.2	2.25		20	61	30
YX9.214-E09	9.25	14.6	8.3	0.9	2.55		18	35	50
YX10.215Y-E10	10.25	15.2	8.2	1	1.77		18	40	60
YX10.216-E10	10.25	16.2	9.2	1	2.82		18	35	50
YX11.519-E14	11.5	18.5	10.55	1.4	3.13		18	35	50
YX14.222-E15	14.15	22	12	1.8	2.5		18	26	58
YX14.316A-E20	14.3	16	10	2	3.5		18	45	90
YX16.223-E18	16.15	23	12	2.1	3		18	26	60
YX19.230-E20	19.2	30	17	2.3	3		18	26	62
YX22.236-E20	22.2	36	19	2.3	3		18	26	57

Item	Dimensions					Angles
Item	D	H	h	e	SR		α°	α°	β°
SX12.219B-E12Q	12.2	19.4	11	1.2	2.87		18	55	40
SX16.224-E14Q	16.2	24.2	13	1.4	2.79		18	60	40
YX12.216-E12Q	12.2	16	9	1.2	3.5		18	40	60
YX13.218-E15Q	13.2	18.4	10.4	1.5	5.2		18	35	70
YX14.217-E13Q	14.25	17	9.97	1.33	3		18	40	80
YX14.219-E14Q	14.2	19	11	1.4	3		18	40	70
YX14.219S-E13Q	14.25	19	10.97	1.33	2.5		18	40	88
YX14.220-E14Q	14.2	19.8	11.4	1.4	2.4		18	40	70
YX16.224-E14Q	16.2	24.2	12.95	1.4	2.79		18	40	60
YX16.225-E14Q	16.2	25.2	12.5	1.4	2.5		18	24	55
YX20.233-E24Z	20.2	33	33	2.4	3.2		18	28	57

Note: welcome OEM&ODM and we can produce the buttons as per your drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
