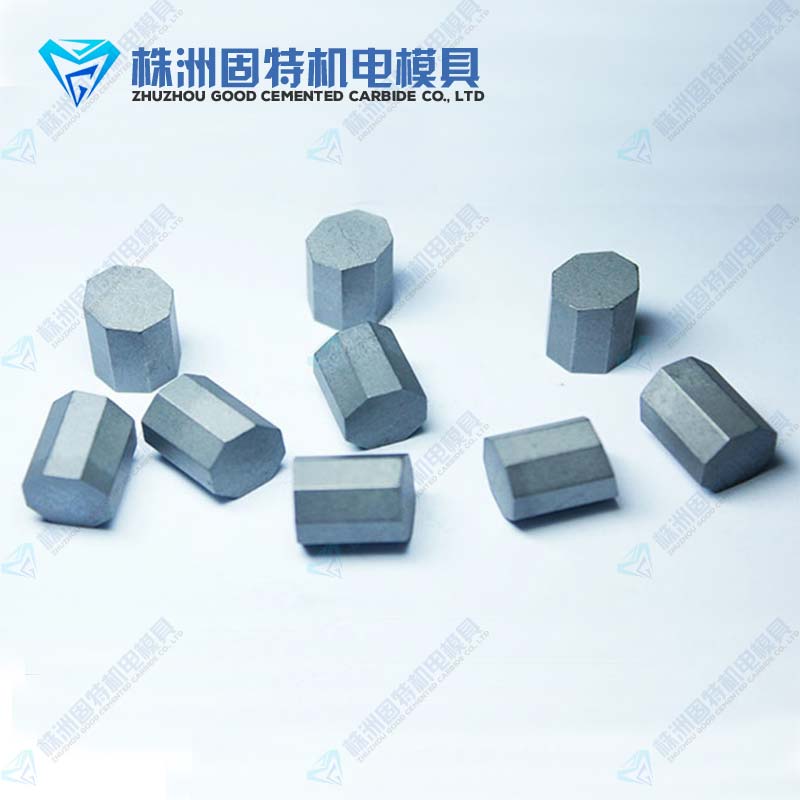

T type

Type： T1005
Dimension d： 5
Dimension h： 10

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: Our factory produces various types of drill bits and can make special dimension bits according to your drawings. We adopt 100% virgin raw material for production and they have excellent toughness and long life span. The drill bits are widely used as mining, geological prospecting, cutting tools, etc. Different grades for various applications are available.

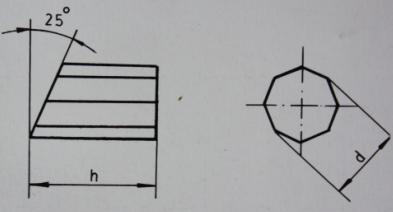

■Drawing

■Size(mm)

Type	Dimension
Type	d	h
T1005	5	10
T1007	7	10
T1007A	7	15
T1007B	7	20
T1010	10	15
T1010A	10	20

Type	Dimension
Type	b	h	s
T3004	4	15	3.6
T3005	5	20	4
T3006	6	20	6
T3008	8	20	6
T3010	10	20	8

Type	Dimension
Type	b	h	s
T3015	5	7	3
T3015A	5	8	5
T3015B	5	10	5
T3015C	5	13	5
T3017	7	10	3
T3017A	7	20	7
T3018	8	8	3
T3110	10	14	4
T3114	14	25	12

Note: not all the sizes and types are showed in here.
Welcome OEM&ODM and we can produce the bits as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
