Spoon type

Item： SS12.214-F2
Dimensions D： 12.22
Dimensions H： 14
Dimensions h： 7.5
Dimensions e： 1.5
Angles α°： 18

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: Carbide buttons have various shapes, e.g. spherical, ballistic, conical, parabolic, flat-top, etc.
Using 99.95% high purity tungsten carbide powder for production, it has a better strength and hardness, thereby a longer service life.
Taking high isostatic pressing precision machine, our buttons have a uniform density and do not break easily.
Sintered by overvoltage sintering furnace, the carbide buttons are 24% more abrasive resistancing.
Grinded by centerless grinder, it has precise measurement. Welding is more tightly and it won’t drop from drills.
The carbide buttons are used to make rock drill bits widely used in oil field and mining. Suitable for precision lathe are used in nonstop cutting of cast iron. It is fitting for serving as drill heads of heavy rock-digging machinery, plumbum heads are used in deep hole drilling and rock drilling terrace vehicles.

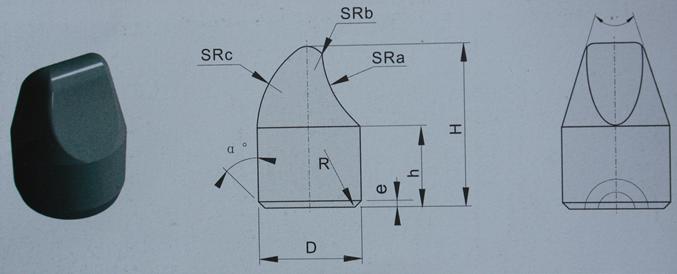

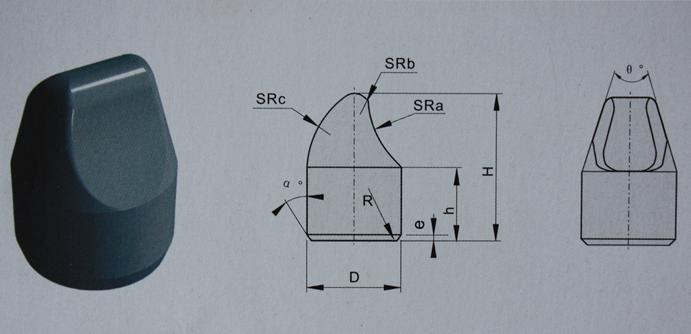

■Drawing

■Size(mm)

Item	Dimensions				Angles
	D	H	h	e	α°	SRa	SRb	SRc	θ°
SS12.214-F2	12.22	14	7.5	1.5	18	11	2.5	20	36
SS12.215-F2	12.22	15	8.5	1.5	18	11	2.5	20	36
SS14.318-F2	14.3	18	9.9	2	18	8	2.5	16	36
SS16.223-F2	16.2	23	11.8	1.9	18	15	2.5	23	30
SS16.321-F2	16.35	21	9.9	2	18	15	2.5	23	30
SS16.323-F2	16.35	23	11.9	2	18	15	2.5	23	30
SS16.324-F2	16.2	24.08	13	1.4	18	11	1.5	18	30
SS19.330-F2	19.35	30	17	2	18	16	3	26	30
YS9.715-E09	9.7	15.4	8.75	0.9	18	8	9.56	0.8	30
YS10.717-E10	10.73	17	9.65	1	18	8	1.05	1	30
YS14.220-E20	14.2	20	11	2	18	10	16	3	36
YS15.223-E20	15.2	23	12	2	18	18	15	3	36
YS18.828-E12	18.85	28.1	15.6	1.2	18	16	25	3	29

Item	15.6 Dimensions				Angles
Item	D	H	h	e	α°	SRa	SRb	SRc	θ°
SS12.319C-F12Q	12.35	19.4	11	1.2	30	9	1.2	11.9	30
SS16.324A-E14Q	16.2	24	11.8	1.4	18	11	1.5	18	30
SS1623P-E15Q	16.35	23.1	11.8	1.5	18	18	3	20	40
SS19.330-E20Q	19.35	30	17	2	18	16	3	25	30
SS1928B-E20Q	19.35	28	14	2	18	25	2	28	30
SS1929-E20Q	19.35	28.8	15.5	2	18	14	2	18	30
SS1930C-E20Q	19.35	30	15	2	18	28	2	30	24
SS1933A-E20Q	19.35	32.6	17.4	2	18	16	2	18	36
YS14.220-E14Q	14.2	20.5	10.5	1.4	18	9.77	16	1.5	36
YS14.221A-E14Q	14.2	21.2	13	1.4	18	9.5	14	1.5	30
YS14.221-E14Q	14.2	21.2	11.4	1.4	18	9.5	16	1.5	30
YS14.221N-E14Q	14.2	21	13	1.4	18	6	14	3	36
YS14.222S-E13Q	14.25	22	11.97	1.33	18	12	20	2.5	10
YS16.222-E14Q	16.2	20.7	13	1.4	18	9.62	18	1.5	30
YS16.223A-E14Q	16.2	23	11.71	1.4	18	16	25	2.2	30
YS16.223B-E14Q	16.2	23	11.7	1.4	18	16	25	2.2	30
YS16.223-E14Q	16.2	23	11.71	1.4	18	11	18	2	30
YS16.223N-E14Q	16.2	22.5	11.9	1.4	18	12	25	2.5	36
YS16.225S-E13Q	16.25	24.5	12.96	1.33	18	16	20	2.5	30
YS16.226-E14Q	16.2	26	14	1.4	18	20	28	2	30
YS16.227C-E14Q	16.2	27.4	14.6	1.4	18	13	18	1.5	36
YS17.124-E20Z	17.15	24	13.1	2	18	15	25	3	40
YS18.729-E20Q	18.7	29	15	2	18	24	20	3	30
YS18.828-E12Q	18.85	28.1	15.6	1.2	18	16	25	3	29
YS18.878-E12Q	18.85	28.1	15.6	1.2	18	16	25	3	29
YS20.232P-E20Q	20.2	32	17	2	18	28	22	3	30

Note: welcome OEM&ODM and we can produce the buttons as per your drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
