Carbide anvils 6-facet processed Φ70-Φ95

Carbide anvils 6-facet sintered Φ103-Φ115

Carbide anvils 6-facet processed Φ103-Φ115

K1 cross type

Type： K1012
Dimension L： 12
Dimension h： 12
Dimension s： 8
Dimension r： 16
Dimension e： 1.0

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: Our factory produces various types of drill bits and can make special dimension bits according to your drawings. We adopt 100% virgin raw material for production and they have excellent toughness and long life span. The drill bits are widely used as mining, geological prospecting, cutting tools, etc. Different grades for various applications are available.

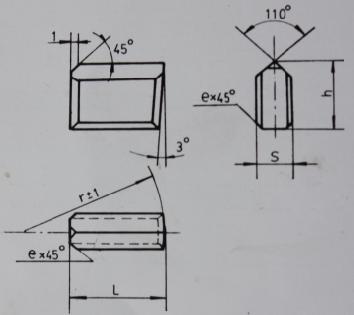

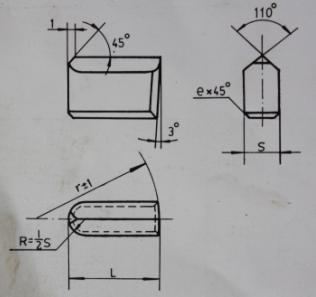

■Drawing

■Size(mm)

Type	Dimension
Type	L	h	s	r	e
K1012	12	12	8	16	1.0
K1013	13	12	8	16
K1014	14	12	8	17
K1015	15	12	8	20
K1017	17	14	8	20
K1019	19	14	8	22
K1020	20	16	10	23	1.5
K1020A	20	18	10	23
K1022	22	16	10	25
K1024	24	16	10	27
K1026	26	16	10	29
K1028	28	16	10	31
K1030	30	18	12	35
K1032	32	18	12	38	2
K1035	35	20	15	45
K1041	41	22	17	51
K1045	45	25	19	57.5
K1053	53	25	20	59

Type	Dimension
Type	L	h	s	r	e
K1114	14	12	8	20	1.0
K1116	16	12	8	22
K1118	18	14	10	22.5
K1120	20	16	10	28.5
K1126	26	16	10	35	1.5
K1126A	26	18	10	35
K1128	28	16	10	35
K1128A	28	18	10	35
K1130	30	16	12	38
K1130A	30	18	12	38
K1132	32	16	12	44.5	2.0
K1132A	32	18	12	44.5
K1135	35	16	12	51
K1135A	35	18	12	51
K1139	39	18	14	57.5
K1143	43	20	14	63.5

Note: not all the sizes and types are showed in here.
Welcome OEM&ODM and we can produce the bits as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
