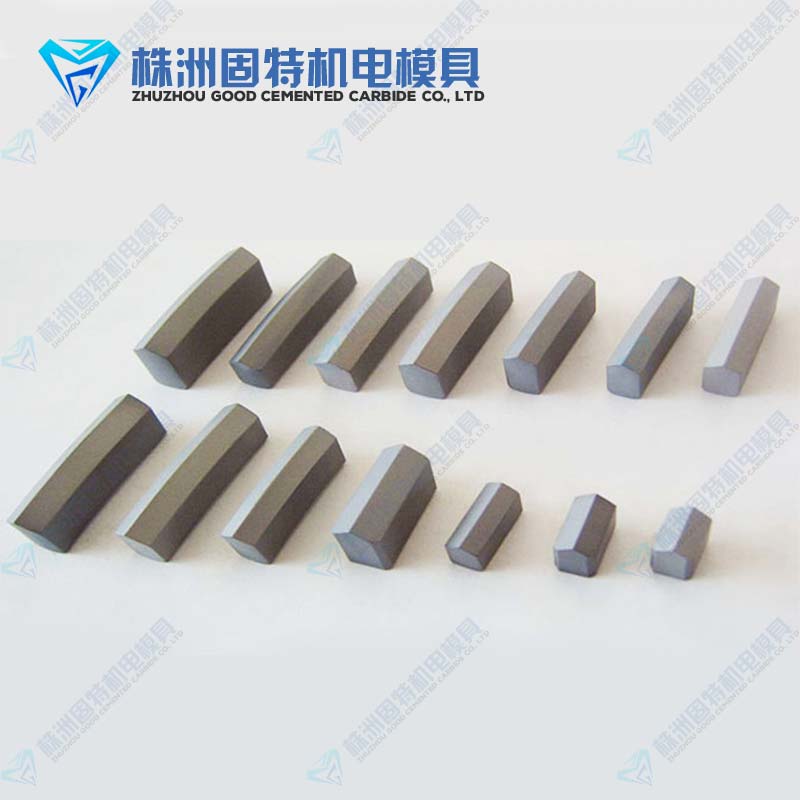

K0 type

Type： K016
Dimension L： 16
Dimension h： 12
Dimension S： 6
Dimension R： 30
Dimension r： 8

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description: Our factory produces various types of drill bits and can make special dimension bits according to your drawings. We adopt 100% virgin raw material for production and they have excellent toughness and long life span. The drill bits are widely used as mining, geological prospecting, cutting tools, etc. Different grades for various applications are available.

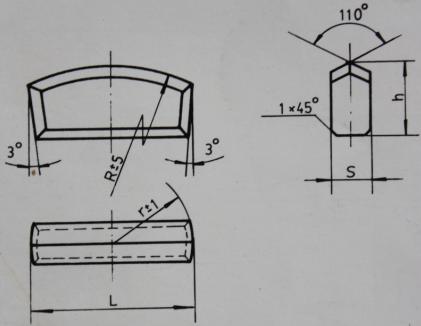

■Drawing

■Size(mm)

Type	Dimension
Type	L	h	S	R	r
K016	16	12	6	30	8
K020	20	12	6	40	10
K026	26	12	6	50	13
K030	30	15	8	80	15
K032	32	15	8	80	16
K034	34	15	8	80	17
K036	36	15	8	80	18
K036A	36	15	10	80	18
K038	38	15	8	120	19
K038A	38	15	10	120	19
K040	40	15	8	120	20
K040A	40	15	10	120	20
K040B	40	18	10	120	20
K043	43	15	10	120	21.5
K043A	43	18	8	120	21.5
K043B	43	18	10	120	21.5
K046	46	15	10	160	23
K046A	46	18	10	160	23
K049	49	18	10	160	24.5
K054	54	18	10	160	27

Note: not all the sizes and types are showed in here.
Welcome OEM&ODM and we can produce the bits as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
