SNUM series carbide inserts

Item： SNUM 120404R-A3
S ±0.13： 4.76
d1 ±0.08： 5.16
rε ±0.10： 0.4
α ≈： 3

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

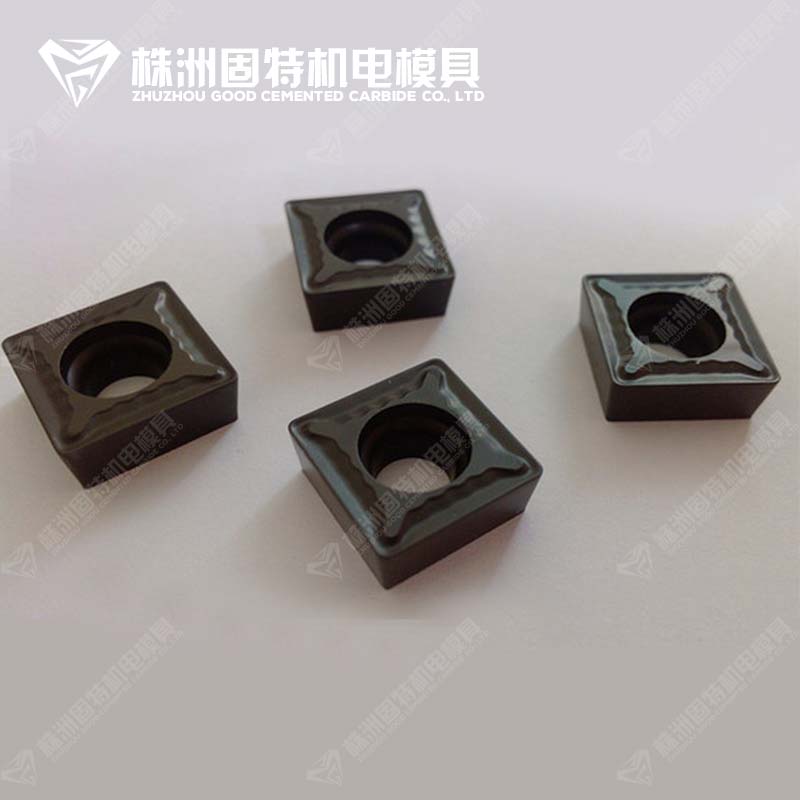

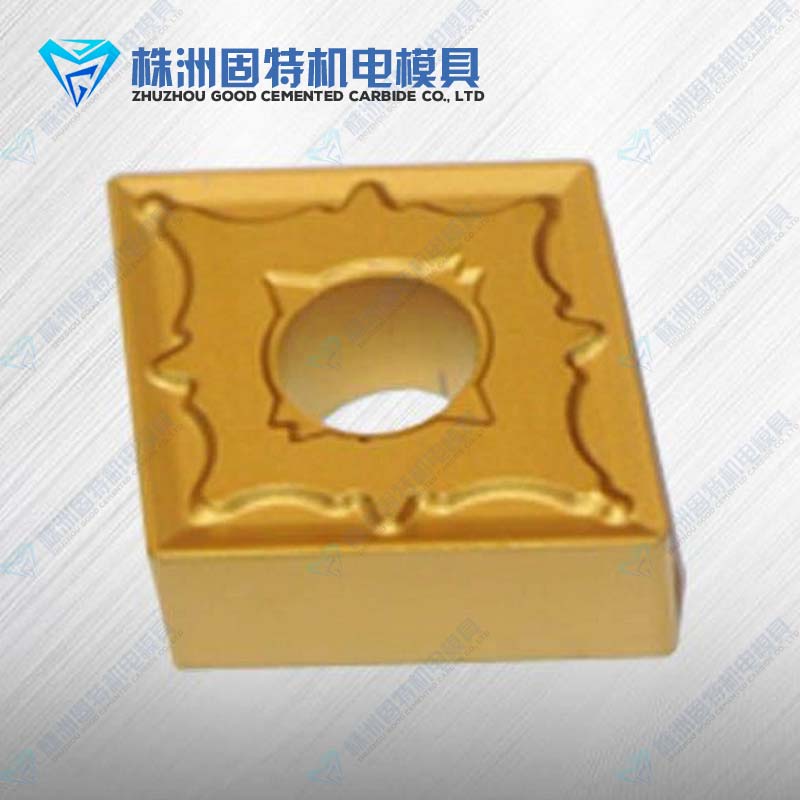

Description & features: With more than 10 years manufacturing & OEM experience, we can accept all kinds of special designed inserts. We adopt 100% virgin raw material and the carbide inserts are in high performance and wear-resisting for working steel, stainless steel, cast iron, brass, etc. The carbide inserts are widely used in automotive parts, aerospace, motorcycle parts, machinery and equipment manufacturing, and other parts turning, milling and so on.

Turning inserts:
CNMG, SNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA, TNUN, WNMG, DCMT, RPMT, TNMA, WNMA,WCMX
Milling inserts
SEKN, SPKN, RDKW, RPMW, TPCN, TPKN, TPAN, APKT, XSEQ
Aluminum turning inserts
CCGX, DCGX, TCGX, VCGX, SCGX, SEHT, APKT
Cermet and Ceramics inserts
SEKN, SPKN, SPRN, SEEN, TNGG, CNMG, SNMG, TNMG, CCMT, DNMG, WNUN, WNMG

■Drawing

■Size(mm)

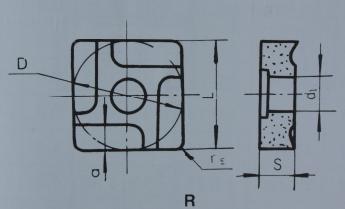

SNUM-A

Item	D=L		S ±0.13	d1 ±0.08	rε ±0.10	α ≈
Item	Basic size	Tolerance	S ±0.13	d1 ±0.08	rε ±0.10	α ≈
SNUM 120404R-A3	12.70	±0.13	4.76	5.16	0.4	3
SNUM 120404L-A3	12.70	±0.13	4.76	5.16	0.4	3
SNUM 150608R-A4	15.875	±0.18	6.35	6.35	0.8	4
SNUM 150608L-A4	15.875	±0.18	6.35	6.35	0.8	4
SNUM 150612R-A4	15.875	±0.18	6.35	6.35	1.2	4
SNUM 150612L-A4	15.875	±0.18	6.35	6.35	1.2	4

SNUM-H

Item	D=L		S ±0.13	d1 ±0.08	rε ±0.10	α ≈
Item	Basic size	Tolerance	S ±0.13	d1 ±0.08	rε ±0.10	α ≈
SNUM 090304-H3	9.525	±0.08	3.18	3.81	0.4	3
SNUM 120408-H4	12.70	±0.13	4.76	5.16	0.8	4
SNUM 150608-H5	15.875	±0.18	6.35	6.35	0.8	5
SNUM 190612-H6	19.05	±0.18	6.35	7.93	1.2	6
SNUM 250712-H10	25.40	±0.25	7.93	9.12	1.2	10

SNUM-V

Item	D=L		S ±0.13	d1 ±0.08	rε ±0.10	α ≈
Item	Basic size	Tolerance	S ±0.13	d1 ±0.08	rε ±0.10	α ≈
SNUM 090304-V2	9.525	±0.08	3.18	3.81	0.4	2
SNUM 120404-V3	12.70	±0.13	4.76	5.16	0.4	3
SNUM 120412-V3	12.70	±0.13	4.76	5.16	1.2	3
SNUM 150608-V4	15.875	±0.18	6.35	6.35	0.8	4
SNUM 190612-V5	19.05	±0.25	6.35	7.93	1.2	5
SNUM 190624-V5	19.05	±0.25	6.35	7.93	2.4	5

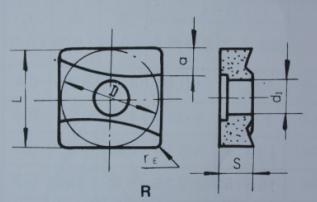

SNUM-U

Item	D=L		S ±0.13	d1 ±0.08	rε ±0.10	α ≈
Item	Basic size	Tolerance	S ±0.13	d1 ±0.08	rε ±0.10	α ≈
SNUM 150608R-U5	15.875	±0.18	6.35	6.35	0.8	5
SNUM 150608L-U5	15.875	±0.18	6.35	6.35	0.8	5
SNUM 190608R-U6	19.05	±0.18	6.35	7.93	0.8	6
SNUM 190608L-U6	19.05	±0.18	6.35	7.93	0.8	6
SNUM 220712R-U7	22.225	±0.25	7.93	7.93	1.2	7
SNUM 220712L-U7	22.225	±0.25	7.93	7.93	1.2	7
SNUM 250716R-U8	25.40	±0.25	7.93	9.12	1.6	8
SNUM 250716L-U8	25.40	±0.25	7.93	9.12	1.6	8

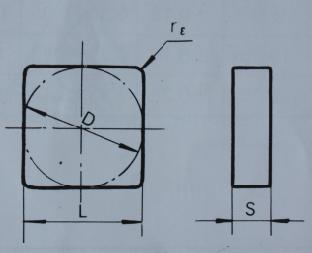

XSNUN

Item	D=L		S ±0.15	rε
Item	Basic size	Tolerance	S ±0.15	rε
XSNUN 130308	13.10	±0.15	3.85	0.8
XSNUN 130516	13.10	±0.15	5.11	1.6
XSNUN 160516	16.2	±0.18	5.11	1.6
XSNUN 190520	19.5	±0.18	5.11	2.0
XSNUN 19T520	19.5	±0.18	5.96	2.0

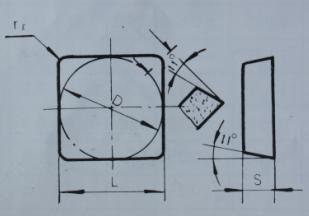

XSPUN

Item	D=L		S ±0.15	rε
Item	Basic size	Tolerance	S ±0.15	rε
XSPUN 130308	13.10	±0.15	3.53	0.8
XSPUN 160512	16.2	±0.18	5.10	1.2
XSPUN 19T516	19.5	±0.18	5.96	1.6

Note: welcome OEM&ODM and we can produce the inserts as drawings.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
