Cemented carbide rolls

Item： 1
D： 156
d： 92
H： 61.4

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

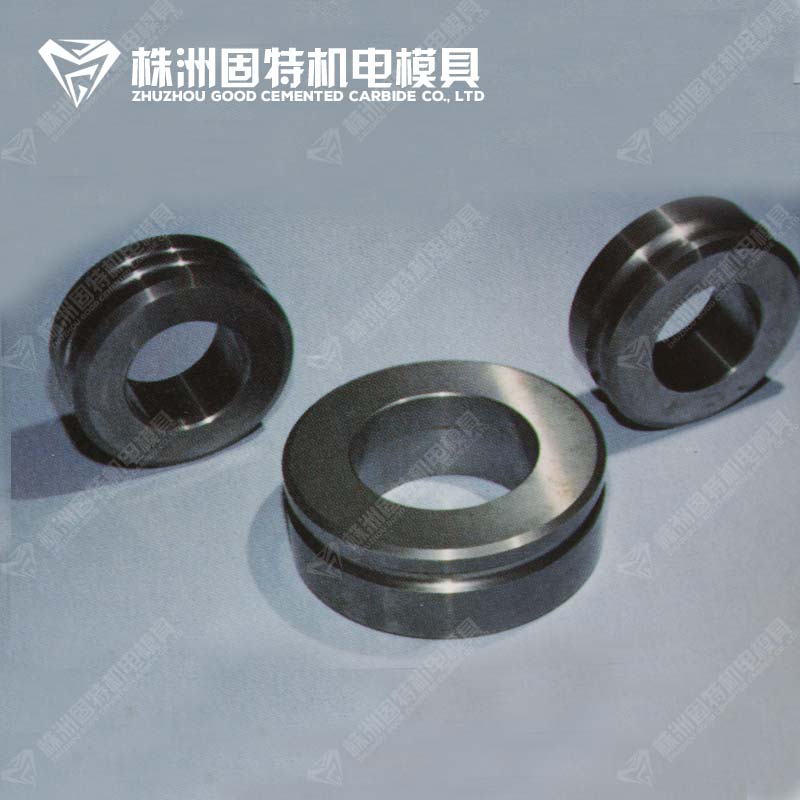

Application & features: The rollers for high-speed rolling mill are suitable for producing ferrous or nonferrous metables of wire. High precision and wear resistance, internal stress and hardness are guaranteed. Surface can be finished polished as request.

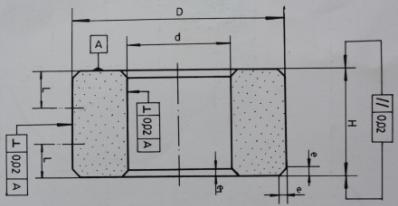

■Drawing

■Size(mm)

Item	D	d	H
1	156	92	61.4
2	156	92	64
3	156	92	69
4	158.75	87.313	62
5	158.75	87.313	70
6	173	95	69
7	177	95	68
8	182	87.315	72
9	206	127	60
10	208	128	72
11	208	155	72
12	210	120	72
13	210	135	72
14	210	160	64
15	218	110	68
16	220	131	72
17	228	130	83
18	228	130	72
19	230	150	32
20	250	140	85
21	285	160	70
22	285	160	95
23	318	260	30

Note: welcome OEM&ODM and we can produce the rolls as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
