Carbide anvils 6-facet processed Φ70-Φ95

Carbide anvils 6-facet sintered Φ103-Φ115

Carbide anvils 6-facet processed Φ103-Φ115

Carbide cold-rolled ribbed rolls

Item： 1
D： 125
d： 82
H： 15

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

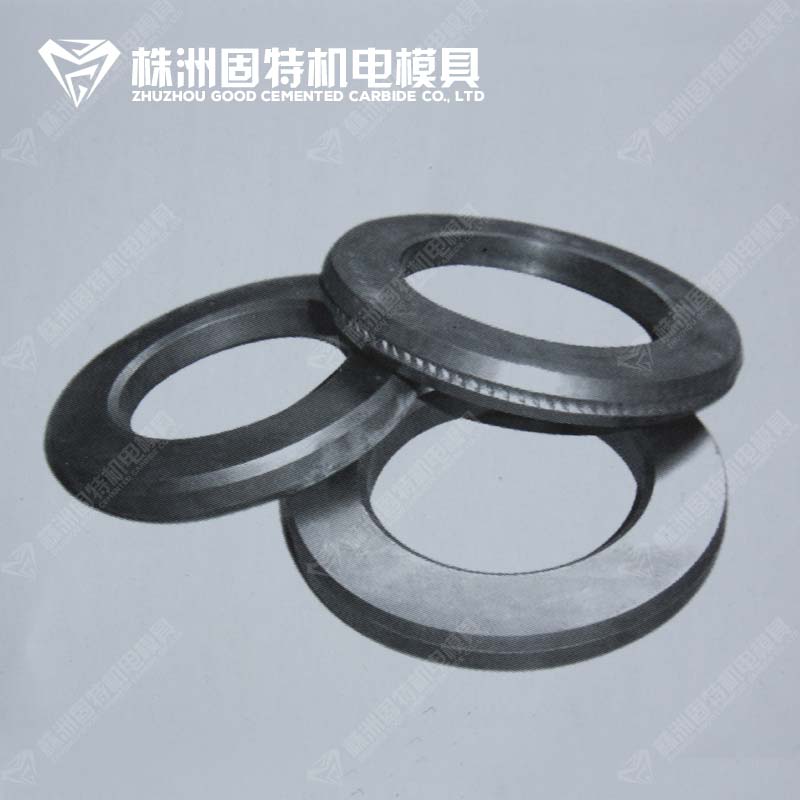

Application & features: The carbide cold roll is a kind of material which consists of tungsten carbide and cobalt with high hardness and wear resistance. They’re mainly used in cold-rolled ribbed steel bar and prestressed hollow slab reinforcement. They’re a replacement of traditional steel rolls.

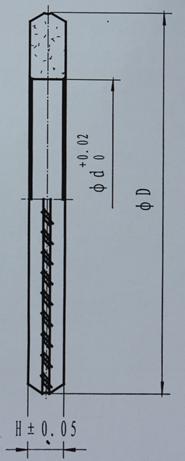

■Drawing

■Size(mm)

Item	D	d	H
1	125	82	15
2	128	82	15
3	130	82	16
4	138	80	18
5	140	80	18
6	145	95	15
7	150	96	15

Note: welcome OEM&ODM and we can produce the rolls as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
