Carbide rings

Item： 1
d： 10.0
D： 18.4
H： 4.5

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

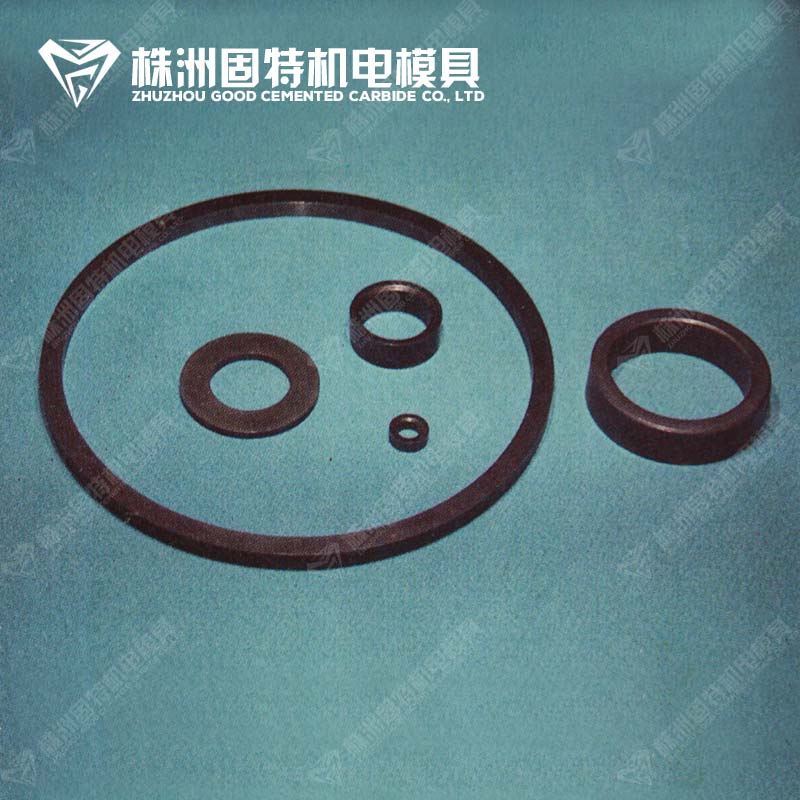

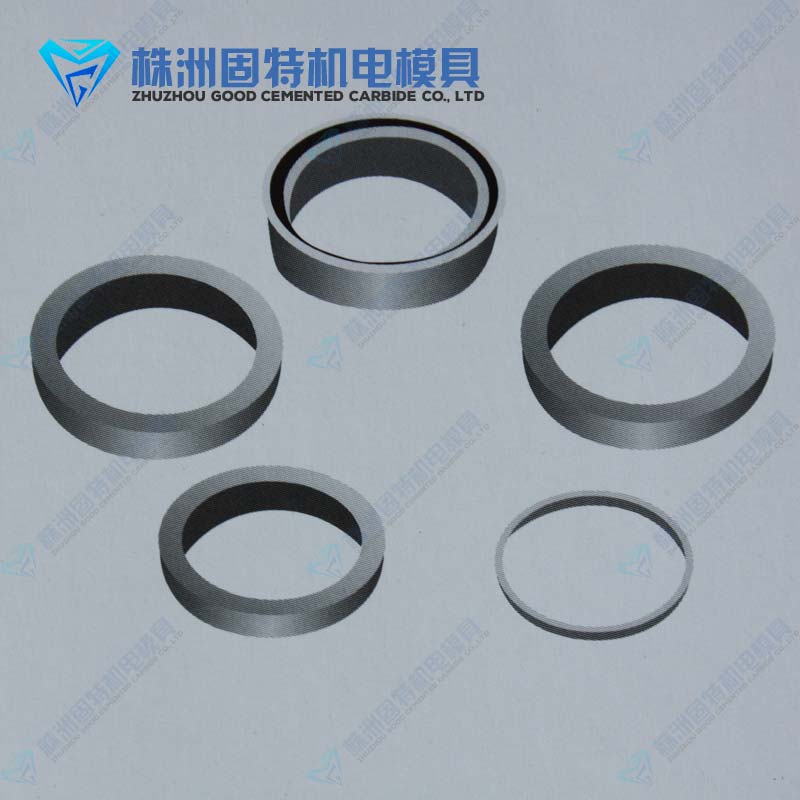

Application & features: The carbide seal rings are mainly used in pumps, valves and machineries. They’re of good mechanical properties, corrosion resistance and wear resistance. Both unground, finish ground and polished are available.

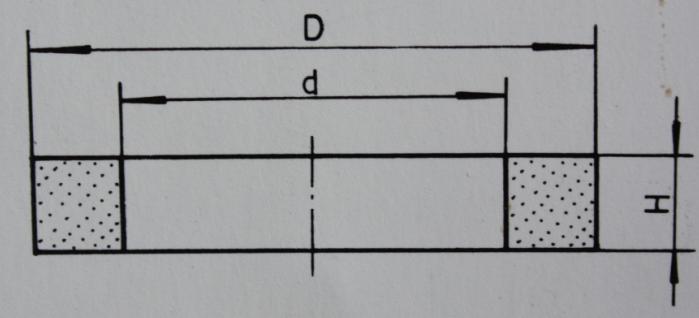

■Drawing

■Size(mm)

Item	d	D	H
1	10.0	18.4	4.5
2	12.0	20.4
3	14.0	22.4
4	16.0	24.4
5	18.0	28.4	5.5
6	20.0	30.4
7	22.0	32.4
8	24.0	34.4	6.5
9	25.0	35.4
10	28.0	39.6
11	30.0	41.6
12	32.0	43.6	8.0
13	33.0	44.6
14	35.0	46.6
15	38.0	49.6
16	40.0	51.6
17	43.0	55.6
18	45.0	57.6
19	48.0	60.6
20	50.0	62.6
21	53.0	65.6
22	55.0	67.6
23	58.0	72.6
24	60.0	74.6
25	63.0	78.0
26	65.0	80.0
27	68.0	83.0	11.0
28	70.0	85.0
29	75.0	92.0
30	80.0	97.0
31	85.0	102.5
32	90.0	109.5
33	95.0	114.5
34	100	117.5
35	110	131.5	13.5
36	120	141.5	13.5

Note: welcome OEM&ODM and we can produce the rings as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
