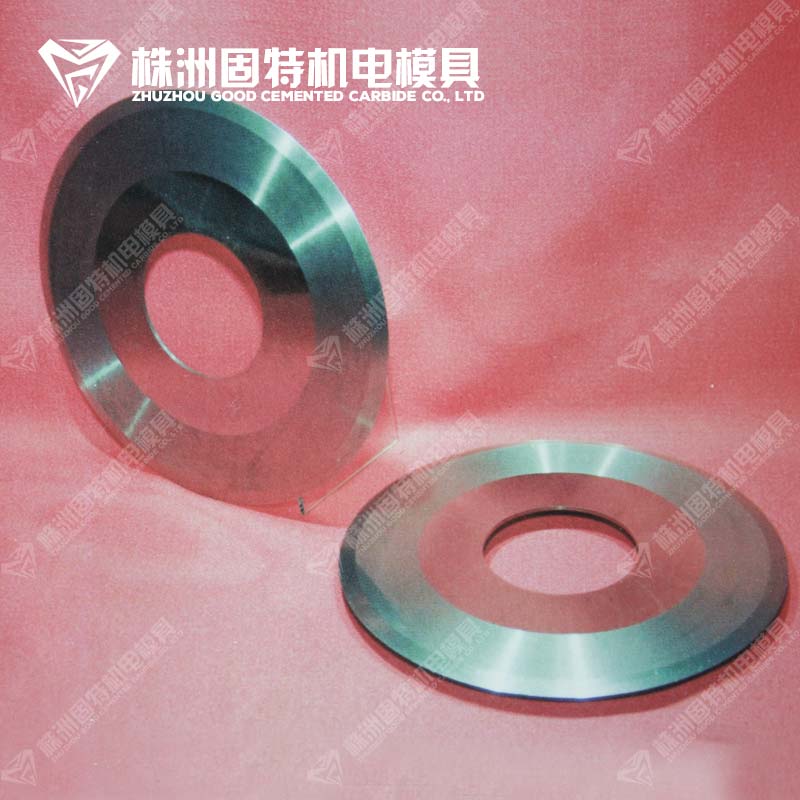

Carbide disc

Item： 1
D： 8.0
d： 3.0
H： 0.2-2.0

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Application & features: The carbide disc cutter is supplied in a range of standard sizes for wood and steel-sawing applications. These kinds of carbide disc cutters are specially manufactured for cutting off and slotting metal materials such as plain steel, chilled steel, aluminum and copper as well as difficult-to-machine materials such as stainless steel, titanium alloys and printed circuit board. Our carbide disc cutters are precision made to a high standard, with specially ground finish and tooth. Compared with the high speed steel saw, it can perform high speed cutting, with a high machining efficiency, accurate slitting and good surface finish.

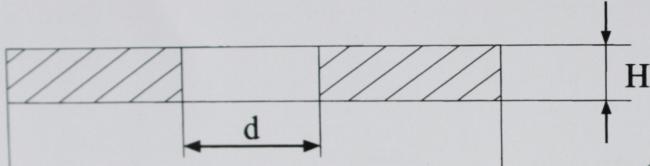

■Drawing

■Size(mm)

Item	D	d	H
1	8.0	3.0	0.2-2.0
2	12.0	5.0	0.2-2.0
3	16.0	5.0	0.2-2.0
4	20.0	5.0	0.2-2.0
5	25.0	8.0	0.2-2.0
6	29.5	14.0	0.2-3.0
7	32.0	8.0	0.2-3.0
8	40.0	8.0	0.2-3.0
9	40.0	10.0	0.2-3.0
10	40.5	16.5	0.2-3.0
11	41.0	12.0	0.2-3.0
12	44.0	25.0	0.2-3.0
13	50.0	12.7	0.2-4.0
14	50.0	13.0	0.2-4.0
15	52.0	24.6	0.2-4.0
16	53.0	15.0	0.2-4.0
17	53.0	23.0	0.2-4.0
18	57.0	24.6	0.2-4.0
19	60.0	12.7	0.2-5.0
20	60.0	16.0	0.2-5.0
21	62.0	15.0	0.2-5.0
22	70.0	12.7	0.2-5.0
23	70.0	22.0	0.2-5.0
24	70.0	25.4	0.2-5.0
25	75.0	22.0	0.2-5.0
26	75.0	25.4	0.2-5.0
27	77.0	21.0	0.2-5.0
28	80.0	22.0	0.2-5.0
29	80.0	25.4	0.2-5.0
30	82.0	25.5	0.2-5.0
31	82.0	21.0	0.2-5.0
32	82.0	2.0	0.2-5.0
33	90.0	22.0	0.2-5.0
34	90.0	25.4	0.2-5.0
35	92.0	25.0	0.2-5.0
36	96.0	21.0	0.2-5.0
37	100	22.0	0.2-5.0
38	100	25.4	0.2-5.0
39	100	32.0	0.2-5.0
40	102	21.0	1.5-3.0
41	102	36.0	1.5-3.0
42	102	39.0	1.5-3.0
43	110	22.0	2.0-6.5
44	110	25.4	2.0-6.5
45	110	32.0	2.0-6.5
46	113	88.0	1.5-3.0
47	115	21.5,30.0	1.5-3.0
48	118	22.0	1.5-3.0
49	122	88.0	1.5-3.0
50	127	21.0	1.5-3.0
51	128	23.0	1.5-2.5
52	150	30.0	2.0-3.5
53	165	22.0	2.0-3.5
54	190	25.4	2.5-3.5
55	200	70.0	3.5-4.5
56	250	70.0	1.5-4.5
57	300	25.4	2.0-4.5

Note: welcome OEM&ODM and we can produce the disc as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
