Conical type

Item： SZ0710H
Dimensions D： 7.25
Dimensions H： 10.75
Dimensions SR： 2.8
Angles θ°： 70
α°： 20

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

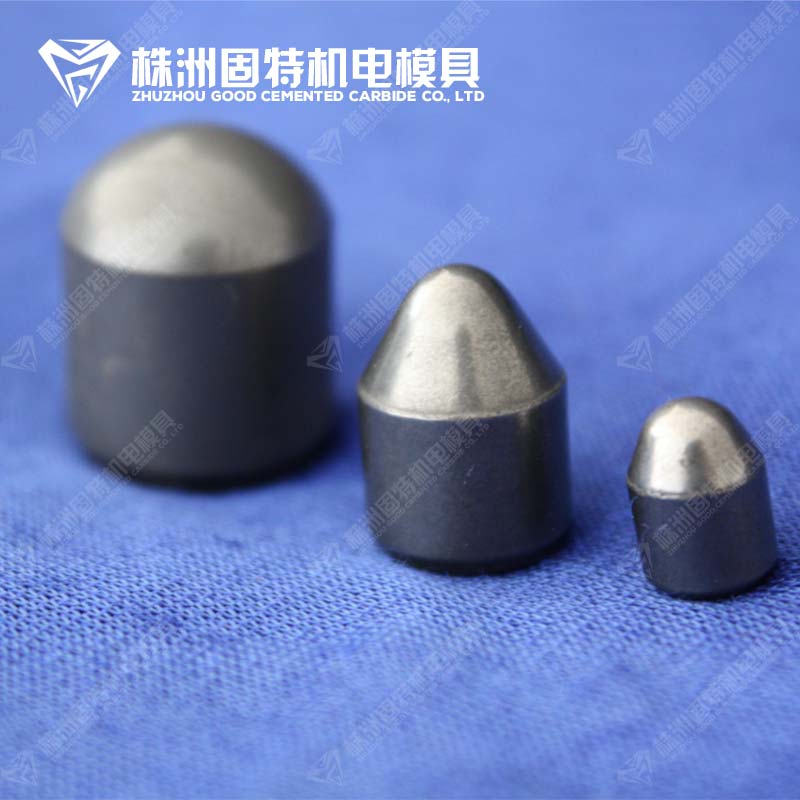

Application & features: Carbide buttons have various shapes, e.g. spherical, ballistic, conical, parabolic, flat-top, etc.
Using 99.95% high purity tungsten carbide powder for production, it has a better strength and hardness, thereby a longer service life.
Taking high isostatic pressing precision machine, our buttons have a uniform density and do not break easily.
Sintered by overvoltage sintering furnace, the carbide buttons are 24% more abrasive resistancing.
Grinded by centerless grinder, it has precise measurement. Welding is more tightly and it won’t drop from drills.
The carbide buttons are used to make rock drill bits widely used in oil field and mining. Suitable for precision lathe are used in nonstop cutting of cast iron. It is fitting for serving as drill heads of heavy rock-digging machinery, plumbum heads are used in deep hole drilling and rock drilling terrace vehicles.

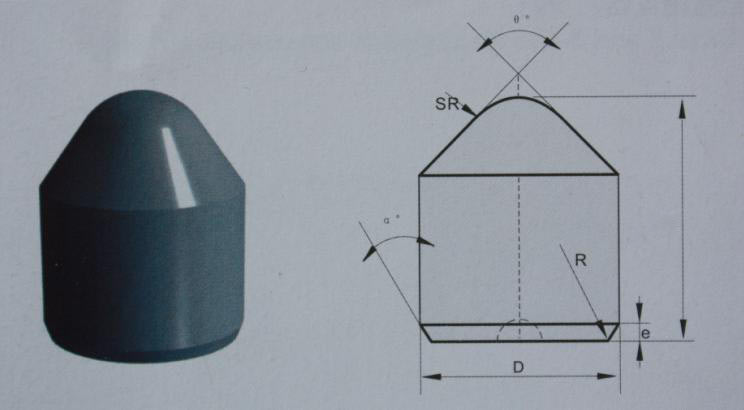

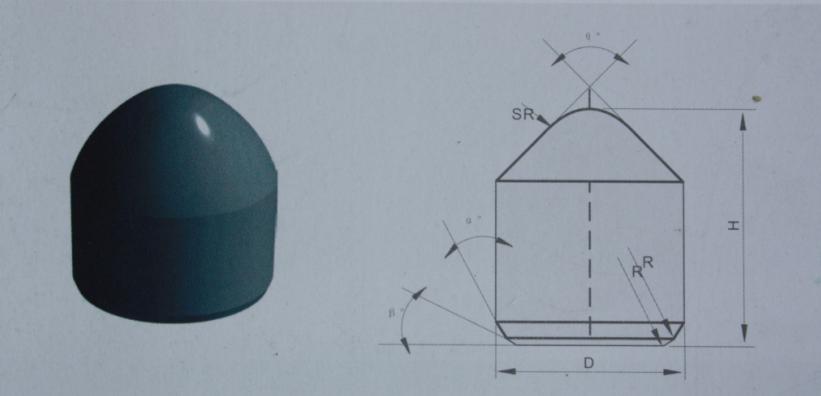

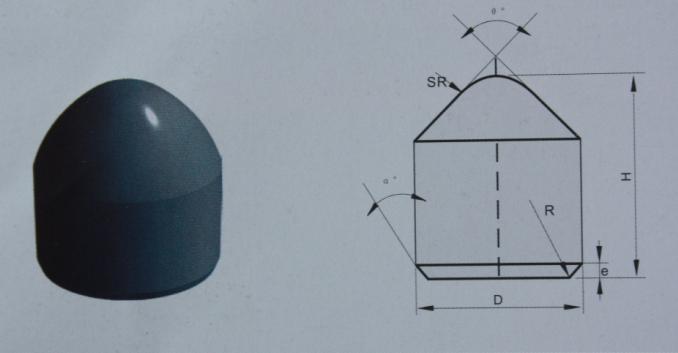

■Drawing

■Size(mm)

Item	Dimensions			Angles
Item	D	H	SR	θ°	α°	β°
SZ0710H	7.25	10.75	2.8	70	20	26.5
SZ0711	7.25	11	2.8	70	20	26.5
SZ0812	8.25	12.2	3	70	20	26.5
SZ0915A	9.25	15	3	55	20	26.5
SZ1016	10.25	16.2	4	70	20	27.5
SZ1116	11.3	15.9	4	52	20	26.5
SZ1117	11.3	17	4	60	20	27.25
SZ1118	11.3	18	4	52	20	26.5
SZ1218A	12.35	17.9	4.8	55	20	27.5
SZ1218B	12.35	18	4	55	20	26.5
SZ1320B	13.35	19.9	4	55	20	27
SZ1420A	14.38	20	5	55	20	14.5
SZ1422A	14.38	21.9	5	55	20	14.5
SZ1424	14.0	24	3	67	20	14.5

Item	Dimensions			Angles
Item	D	H	SR	e	θ°	α°
SZ0711-F2	7.25	11	2.8	0.7	70	30
SZ0812-E15	8.25	12	3	1.5	70	18
SZ0812-F2	8.25	12	3	0.7	70	30
SZ0812-F2	8.25	12	3	0.7	70	30
SZ0814D-F2	8.25	14	3.5	0.7	36.2	30
SZ0914A-F2	9.25	14	3	0.7	55	30
SZ0914D-F2	9.25	14	3.5	0.7	36.2	30
SZ0914-F2	9.25	14	3	0.7	70	30
SZ0914-F2	9.25	14	3	0.7	55	30
SZ0915-F2	9.25	15	3	0.7	55	30
SZ1018-F2	10.25	16.3	4	0.7	52	30
SZ1218B-F2	12.35	18	4	0.7	55	30
SZ1218-E15	12.35	18	4.8	1.5	70	18
SZ1219-F2	12.35	19	4.8	0.7	70	30
SZ1222-E15	14.38	22	5	1.5	71	18
SZ1222-F2	12.35	22.2	4.8	0.7	70	30
SZ1320-F2	13.35	20	4.8	0.7	70	30
SZ1320T-F2	13.35	20	4.8	0.7	50	30
YZ9.514A-E10	9.6	14.1	4.2	1	70	18
YZ12.218-E15	12.22	18	4.8	1.5	70	18
YA12.220-F2	12.22	20	1.5	1.5	82	18
YZ12.228-G15	12.22	18	1.5	1.5	82	45
YZ13.122-E17	13.1	21.5	3.96	1.7	55	18
YZ13.218A-E20	13.2	17.5	4.5	2	48	18
YZ14.219A-E20	14.2	19	4.5	2	49	18
YZ15.221-E20	15.2	21	5	2	45	18
YZ16.025-X30	16	25.3	1.91	3	77	61
YZ17.621-G15	17.6	21.4	3.29	1.5	82	45

Item	Dimensions			Angles
Item	D	H	SR	e	θ°	α°
SZ1420-G10Q	14.35	20.1	5	1	52	45
SZ1825A-E12Q	18.23	25	6	1.2	52	20
SZ1926B-E21Q	19.35	26	7.5	2.1	42	18
YZ12.217D-E15Q	12.22	17	4.3	1.5	50	18
YZ12.217E-E15Q	12.22	17	3.2	1.5	58	18
YZ12.217F-E15Q	12.22	17	4.9	1.5	57	18
YZ14.220D-E15Q	14.2	20	5.8	1.5	43	18
YZ14.220T-E15Q	14.2	20	5	1.5	45	18

Note: welcome OEM&ODM and we can produce the buttons as per your drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
