WNUM series carbide inserts

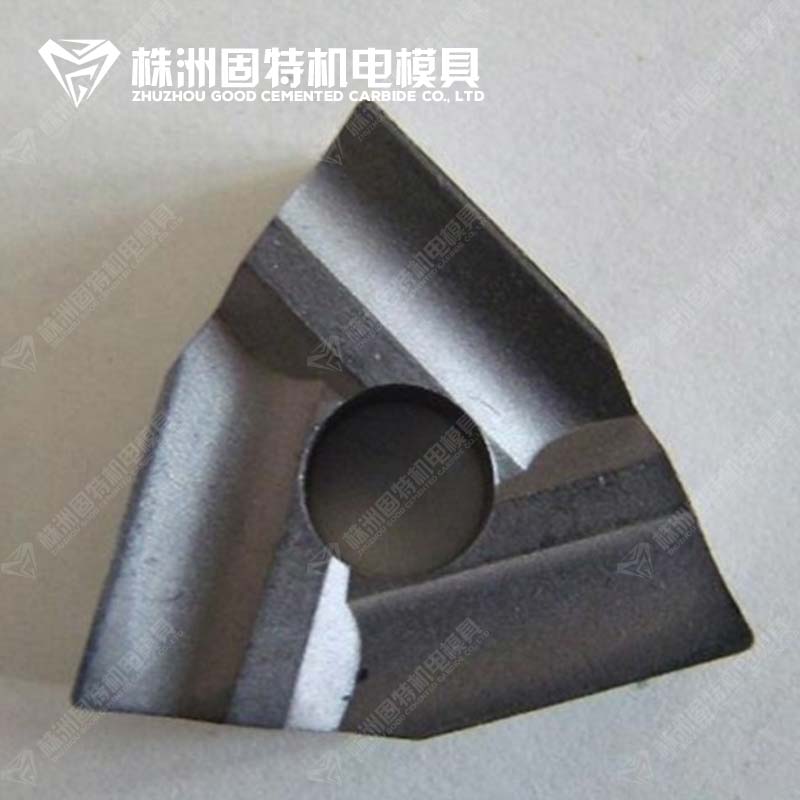

Item： WNUM 130712R-C5
S ±0.13： 7.93
d1 ±0.08： 7.93
rε ±0.10： 1.2
α ≈： 5

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

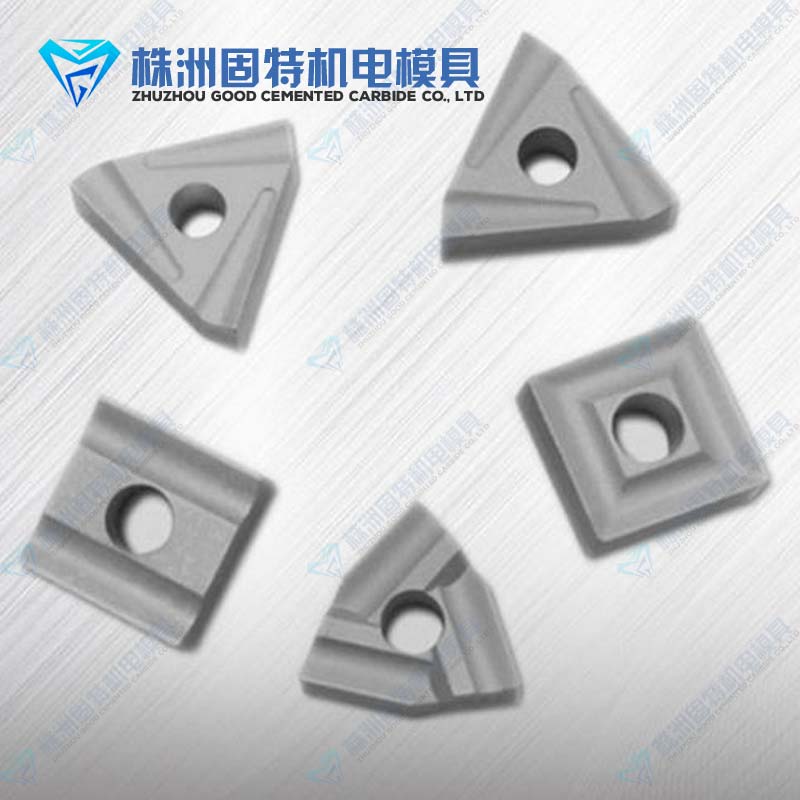

Description & features: With more than 10 years manufacturing & OEM experience, we can accept all kinds of special designed inserts. We adopt 100% virgin raw material and the carbide inserts are in high performance and wear-resisting for working steel, stainless steel, cast iron, brass, etc. The carbide inserts are widely used in automotive parts, aerospace, motorcycle parts, machinery and equipment manufacturing, and other parts turning, milling and so on.

Turning inserts:
CNMG, SNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA, TNUN, WNMG, DCMT, RPMT, TNMA, WNMA,WCMX
Milling inserts
SEKN, SPKN, RDKW, RPMW, TPCN, TPKN, TPAN, APKT, XSEQ
Aluminum turning inserts
CCGX, DCGX, TCGX, VCGX, SCGX, SEHT, APKT
Cermet and Ceramics inserts
SEKN, SPKN, SPRN, SEEN, TNGG, CNMG, SNMG, TNMG, CCMT, DNMG, WNUN, WNMG

■Drawing

■Size(mm)

WNUM-C

Item	D		S ±0.13	d₁ ±0.08	r_ε ±0.10	α ≈
Item	Basic size	Tolerance	S ±0.13	d₁ ±0.08	r_ε ±0.10	α ≈
WNUM 130712R-C5	19.05	±0.18	7.93	7.93	1.2	5
WNUM 130712L-C5	19.05	±0.18	7.93	7.93	1.2	5

Note: welcome OEM&ODM and we can produce the inserts as drawings.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
