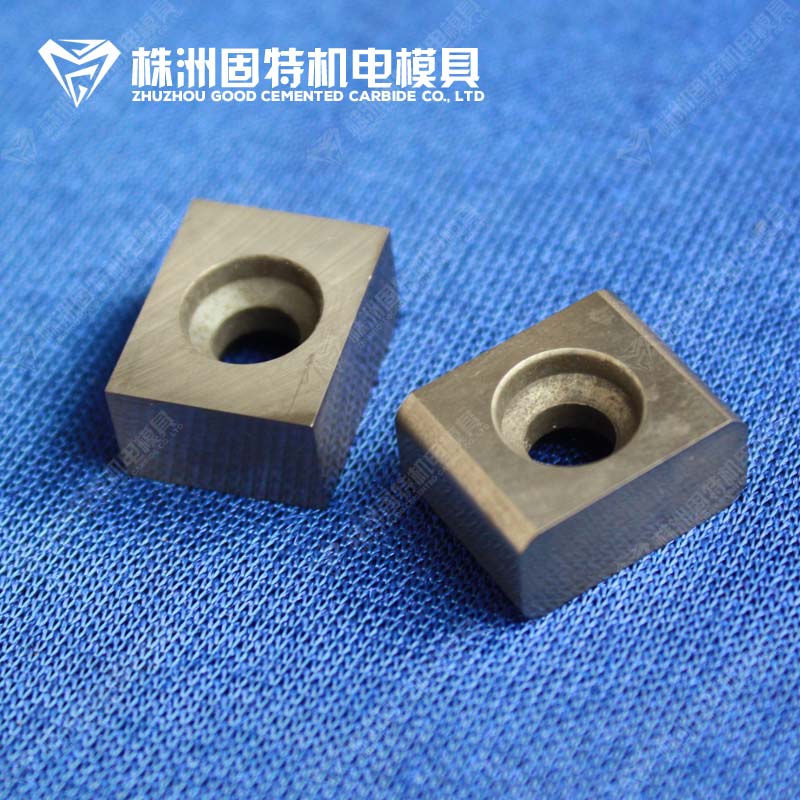

LNUX series carbide inserts

Item： LNUX282200-A12
Original No.： LNUR262224
L ±0.35： 28.4
d ±0.10： 6.35
B ±0.25： 22
S ±0.2： 12

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

Description & features: With more than 10 years manufacturing & OEM experience, we can accept all kinds of special designed inserts. We adopt 100% virgin raw material and the carbide inserts are in high performance and wear-resisting for working steel, stainless steel, cast iron, brass, etc. The carbide inserts are widely used in automotive parts, aerospace, motorcycle parts, machinery and equipment manufacturing, and other parts turning, milling and so on.

Turning inserts:
CNMG, SNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA, TNUN, WNMG, DCMT, RPMT, TNMA, WNMA,WCMX
Milling inserts
SEKN, SPKN, RDKW, RPMW, TPCN, TPKN, TPAN, APKT, XSEQ
Aluminum turning inserts
CCGX, DCGX, TCGX, VCGX, SCGX, SEHT, APKT
Cermet and Ceramics inserts
SEKN, SPKN, SPRN, SEEN, TNGG, CNMG, SNMG, TNMG, CCMT, DNMG, WNUN, WNMG

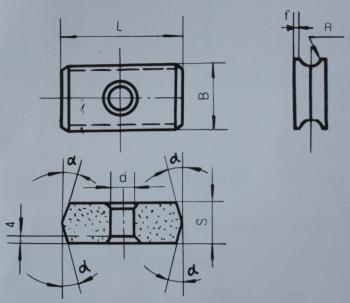

■Drawing

■Size(mm)

LNUX-A

Item	Original No.	L ±0.35	d ±0.10	B ±0.25	S ±0.2	f	R	α°
LNUX282200-A12	LNUR262224	28.4	6.35	22	12	0.8	20	10
LNUX342200-A12		34.1	6.35	22	12	0.2	15	10
LNUX402200-A12	LNUR382224	40.6	6.35	22	12	0.8	20	10
LNUX422200-A12		42.1	6.35	22	12	0.2	15	10
LNUX442200-A12		44.2	6.35	22	12	0.8	15	10

LNUX-2A

Item	Original No.	L ±0.35	d ±0.10	B ±0.25	S ±0.2	f	R	α°
LNUX282200-2A12	LNUG262224	28.4	6.35	22	12	0.8	20	10
LNUX402200-2A12	LNUG382224	40.6	6.35	22	12	0.8	20	10
LNUX452200-2A12		45	6	22	12	0.4	15	10

Note: welcome OEM&ODM and we can produce the inserts as drawings.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.
