Carbide brazed tips

Type： J006
Dimension b： 6.5
Dimension h： 6
Dimension s： 1.9

We're here to help:

Easy ways to get the answers you need.

Share With :

Product list

You can find the product quickly !

contacts

0086-17788903076

sales@zztungstencarbide.com
goodcarbide1@gmail.com

0086-731-88636916

goodcarbide5

All Information

■Description

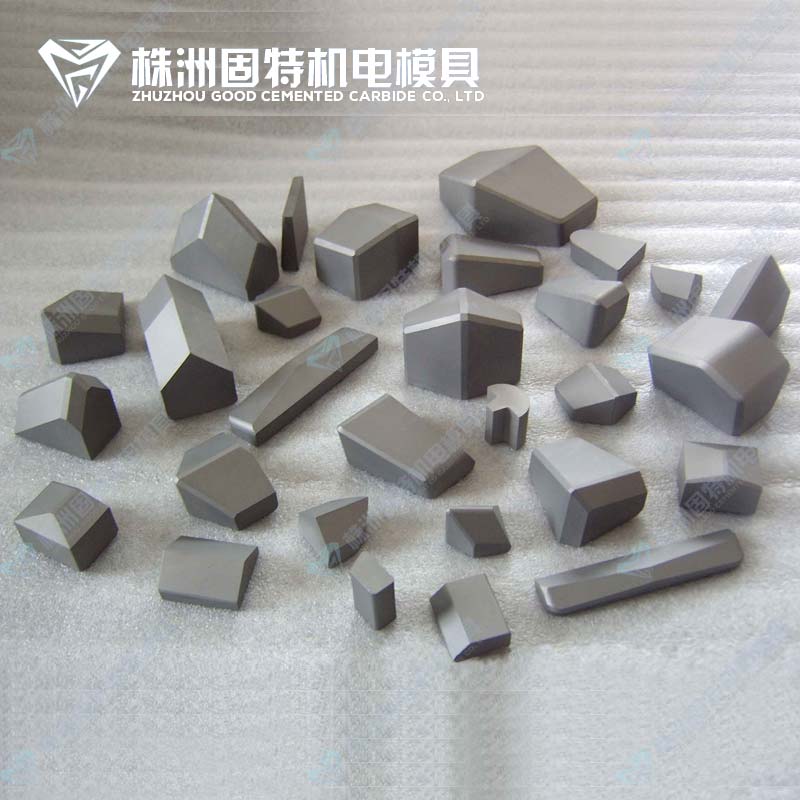

Description: Our factory produces various types of brazing tips and can make special dimension tips according to your drawings. We adopt 100% virgin raw material for production and they have excellent toughness and long life span. The brazing tips are widely used as mining, geological prospecting, rock, various cutting tools, etc. Different grades for various applications are available.

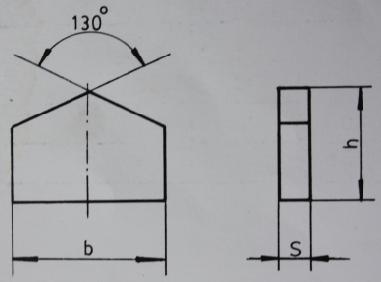

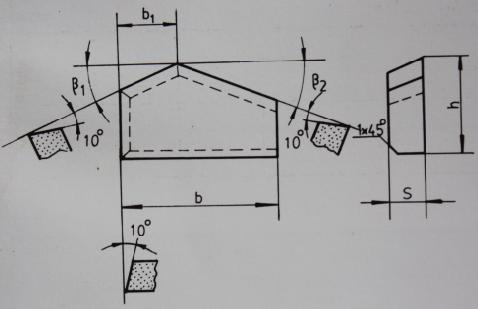

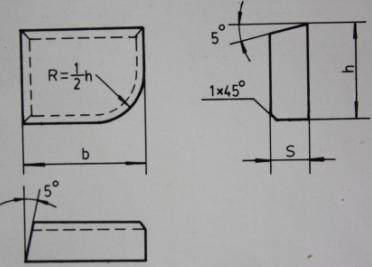

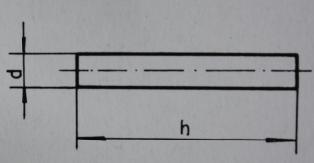

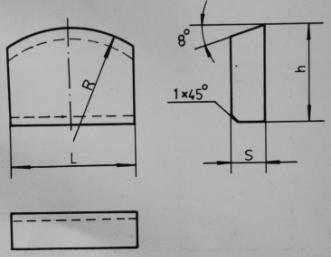

■Drawing

■Size(mm)

Type	Dimension
Type	b	h	s
J006	6.5	6	1.9
J008	8.5	7.5	2.4
J010	10.5	9	2.5
J012	12.5	10	2.5
J014	14.5	10	2.5
J016	16.5	13	3
J018	18.5	12	3.5
J020	20.5	14	3.5
J022	22.5	15	4
J024	24.5	18	4.5
J026	26.5	17	4
J028	28.5	22	4.5
J030	30.5	18.5	4.8
J033	33.5	20	4.5
J036	36.5	19	5
J039	39.5	20	4.5

Type	Dimension
Type	b	h	s	b1	β1	β2
J034R J034L	34	22	8	14	22°	22°
J040R J040L	40	21	9	15	20°	20°
J043R J043L	43	22	8	18	20°
J044R J044L	44	25	8	18	20°
J045R J045L	45	27	9	15	20°
J046R J046L	46	30	8	18	20°
J056R J056L	56	25	10	20	22°
J066R J066L	66	26	10	25	22°

Type	Dimension
Type	b	h	s
J114	14	16	6
J118	18	16	6
J120	20	12	7
J125	25	16	8

Type	Dimension
Type	L	h	S	R
J218	18	20	6	12
J222	22	20	6	17
J228	28	20	6	22
J233	33	25	6	26

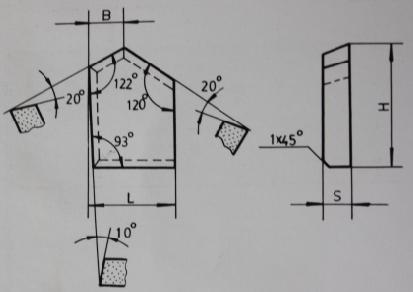

Left:

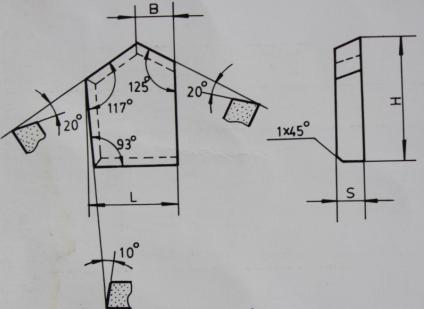

Right:

Type	Dimension
Type	L	H	S	B
MP1112R	11	12	2.5	4
MP1112L	11	12	2.5	4
MP1419R	14	19	3.8	4
MP1419L	14	19	3.8	4
MP1522R	15	22	3	5
MP1522L	15	22	3	5
MP1822R	18	22	6	5
MP1822L	18	22	6	5

Type	Dimension
Type	L	H	S	R	α°
MP1622	16	22	7	6	15
MP2027	20	27	8	7	15
MP2222	22	22	7.5	9	10
MP3035	30	35	12	8	8

Type	Dimension
Type	D	H	r	α°
MZ0916	9	16	1	90
MZ0918	9	18	1	90
MZ1218	12	18	1.5	82
MZ1832	18	32	1.5	82

Type	Dimension
Type	b	h	S	R
T010	10	16	8	4
T012	12	16	8	4
T014	14	16	8	4

Type	Dimension
Type	h	d
T5010	10	1.8
T5015	15	1.8
T5020	20	2.0

Note: not all the sizes and types are showed in here.
Welcome OEM&ODM and we can produce the tips as drawings.
Surface: unground, finished ground, polished are ok.
Grade: Common grades, ISO grades, specified grades or we can match material as per quest.

Awaiting for your inquiry, we will response you at the first time!
